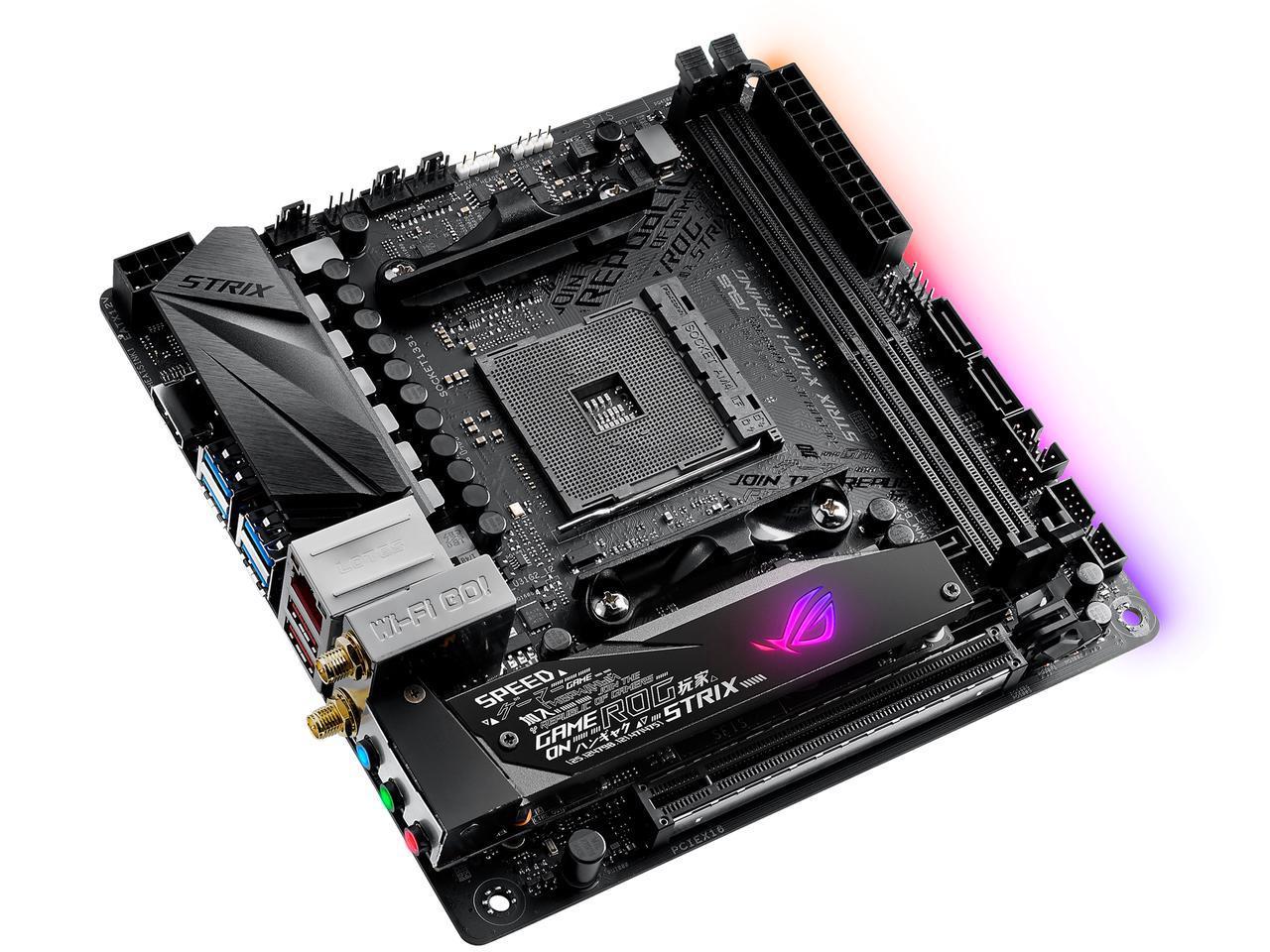

ASUS ROG STRIX X470-I GAMING AMD Ryzen 2 X470 6GB/s AM4 DDR4 HDMI m.2 mini ITX WiFi AMD Ryzen Motherboard

$259.98
Was: $311.98
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12508
Brand:
ASUS TeK
Mfg Sku:
ROG STRIX X470-I GAMING


Share to:

Specification

ASUS ROG STRIX X470-I GAMING AMD Ryzen 2 X470 6GB/s AM4 DDR4 HDMI m.2 mini ITX WiFi AMD Ryzen Motherboard





Detail Specifications
  CPU
AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors
Refer to www.asus.com for CPU support list
  Chipset
AMD X470
  Memory
AMD Ryzen 2nd Generation Processors
2 x DIMM, Max. 32GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
2 x DIMM, Max. 32GB, DDR4 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
AMD 7th Generation A-series/Athlon Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  Graphic
Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 at 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)
  Expansion Slots
AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
  Storage
AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
AMD Ryzen with Radeon Vega Graphics Processor :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
AMD 7th Generation A-Series/Athlon X4 Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD X470 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
  LAN
Intel I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst IV
  Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
  Bluetooth
Bluetooth v4.2, 4.0LE, 3.0+HS
  Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
LED-illuminated audio jacks
Audio Feature :
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
  USB Ports
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X470 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)
AMD X470 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD X470 chipset :
2 x USB 2.0 port(s) (2 at mid-board)
  ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
Overwolf
GameFirst IV
  Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Gamers Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection

- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
ASUS TPU :
- Auto Tuning
- TurboV
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
Turbo APP
- featuring system performance tuning for selected applications
  Back I/O Ports
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red)Type-A,
4 x USB 3.1 Gen 1 (blue) ,
3 x LED-illuminated audio jacks
1 x ASUS Wi-Fi GO module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
  Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x RGB Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) ( x 4 -pin)
1 x Chassis Fan connector(s) ( x 4 -pin)
1 x AIO_PUMP connector ( x 4 -pin)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Thermal sensor connector
1 x Speaker connector
  Accessories
Users manual
M.2 mounting kit
I/O Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension cable for Addressable LED
1 x Panel cable
  BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search
  Manageability
WOL, PXE
  Support Disc
Drivers
ASUS Utilities
Anti-virus software
  Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
  Item Dimension (L"xW"xH")
9 x 8 x 4

Weight
2 lbs

Warranty Information
3 years Manufacture
