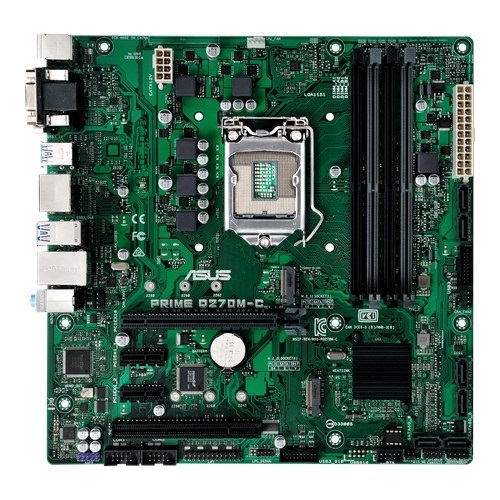

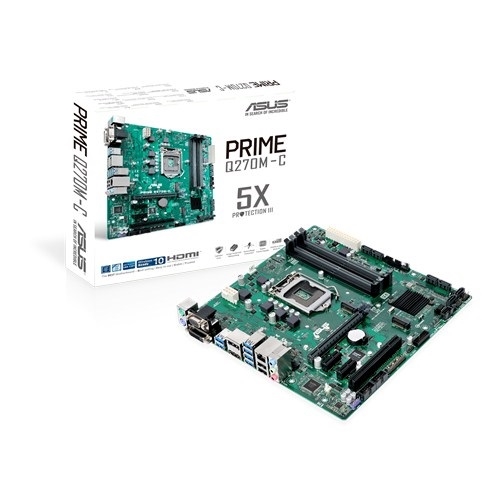

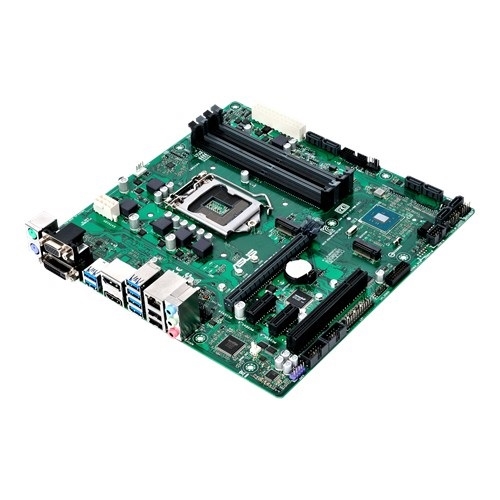

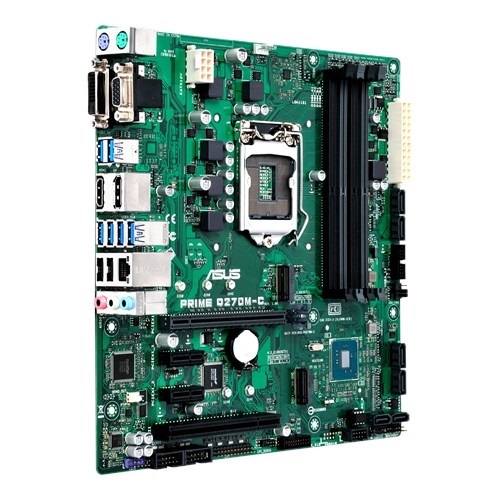

ASUS PRIME Q270M-C CSM LGA1151 Q270 DDR4 SATA PCIE HDMI DVI DisplayPort USB3.0 mATX Kaby Lake motherboard
$187.04
Was: $224.45
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
11720
Brand:
ASUS TeK
Mfg Sku:
PRIME Q270M-C/CSM
Share to:
Specification
ASUS PRIME Q270M-C CSM LGA1151 Q270 DDR4 SATA PCIE HDMI DVI DisplayPort USB3.0 mATX Kaby Lake motherboard
Detail Specifications
| CPU Intel for 7th/6th Generation CoreTM i7/CoreTM i5/CoreTM i3/Pentium/Celeron Processors |
| Chipset Intel Q270 |
| Memory 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) |
| Graphic Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz - Supports RGB with max. resolution 1920 x 1200 at 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 at 60 Hz Maximum shared memory of 1024 MB Supports Intel InTruTM 3D, Quick Sync Video, Clear Video HD Technology, InsiderTM Supports up to 3 displays simultaneously |
| Expansion Slots 1 x PCIe 3.0/2.0 x16 2 x PCIe 3.0/2.0 x1 1 x PCI |
| Storage 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode and X4 PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4) Support Raid 0, 1, 5, 10 Intel OptaneTM Memory Ready |
| LAN Intel I219LM, 1 x Gigabit LAN Controller(s) |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports 10 x USB 3.0/2.0 port(s) (6 at back panel, blue, 0 at mid-board) 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 0 at mid-board) |
| Special Features ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS DIGI+ VRM: 5 Phase digital power design ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM |
| Operating System Support Windows 10 86x64 Windows 8.1 86x64 Windows 7 86x64 |

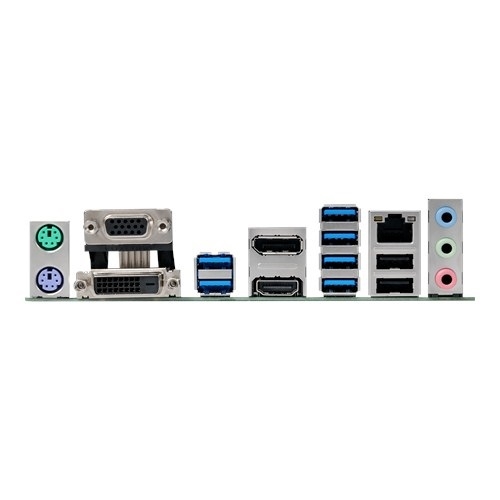

| Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 6 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports 1 x MONO out header 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header |
| Accessories Users manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUSbackup, LOGO flash, ME update, DMI value edit,BIOS value edit |
| Manageability WfM 2.0, DMI 3.0, WOL, WOR, PXE |
| Support Disc Drivers |
| Form Factor Micro ATX Form Factor |
| Item Dimension (L"xW"xH") 11 x 11 x 3 |
| Weight 3.00 lb |
| Warranty Information 3 years Manufacture |
