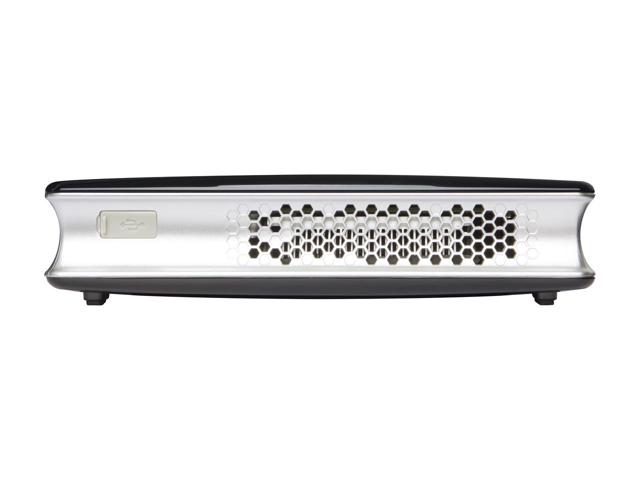

Zotac ZBOX-BI323-U Celeron N3150 HD Graphics 0GB DDR3L RAM 2.5" SATA VGA HDMI Display Port USB 3.0 Mini PC
$139.95
Was: $167.94
Availability:
In Stock
Product Code:
11921
Brand:
Zotac
Mfg Sku:
ZBOX-BI323-U
Share to:
Specification
Zotac ZBOX-BI323-U Celeron N3150 HD Graphics 0GB DDR3L RAM 2.5" SATA VGA HDMI Display Port USB 3.0 Mini PC
** Operating System, Memory, SSD or HDD SOLD SEPARATELY **
Brand
Zotac
Model
ZBOX-BI323-U
CPU Supported
CPU Type
Intel Processor N3150 (quad core, 1.6GHz. Up to 2.08GHz)
Memory Supported
Memory installed
No Memory
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3L 1600
Max Memory Supported
8GB
Storage
Hard Drive Installed
No Hard Drive
Serial ATA
1 x SATA 6.0Gb/s
Graphics
Onboard Video
Intel HD Graphics
Audio
Onboard Audio
Digital 8 Channel Audio (LPCM/bitstream via HDMI), optical SPDIF
Channel
8 Channel
Communications
Max LAN Speed
10/100/1000Mbps
Wifi / Bluetooth Support
* Compliant with IEEE802.11ac standard
* High speed wireless connection and enhanced wireless security * Fully qualified Bluetooth v4.0
Extension Bays
2.5" Internal Bays
2.5-inch SATA 6.0 Gb/s HDD/SSD bay
Front Panel Ports
Front USB
2 x USB 3.0 (1 from USB 3.0/SD combo & 1 type-C on front)
Card Reader
3-in-1 card reader SD/SDHC/SDXC
Other Front Ports
Microphone input
Headphone output
Back Panel Ports
HDMI
1 x HDMI 1.4b
VGA
1 x DP 1.1a
1 x VGA output
Rear USB
2 x USB 3.0
Power Supply
Power Supply
AC 100-240V, 50/60Hz, 19V, 3.42A, Max 65W
Physical SPEC
Dimensions
1.73" x 7.40" x 7.40"
Weight
3.1 kg
Features
Features
New ZBOX B-series with Intel Braswell Processor
Intel HD graphics
- Intel Quick Sync Video
- Intel Clear Video HD technology
- Native 4K support (H.265, H.264 decode)
Low CPU power (6W TDP)
3 displays output (DP,HDMI & VGA)
One USB 3.0 type-C reversible-plug connector on front
Windows 7 & 8.1 64-bit, Windows 10 32/64-bit ready
Packaging
Packaging
Bundled with Stand, wireless antenna
