ASUS B250 MINING EXPERT i7/i5/i3 LGA 1151 B250 Max. 32GB DDR4 19 slots PCIE SATA ATX Mining motherboard
$195.95
Was: $235.14
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12018
Brand:
ASUS
Mfg Sku:
B250 MINING EXPERT
Share to:
Specification
ASUS B250 MINING EXPERT i7/i5/i3 LGA 1151 B250 Max. 32GB DDR4 19 slots PCIE SATA ATX Mining motherboard
Detail Specifications
| CPU LGA1151 socket for 7th and 6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron Processors Supports 14nm CPU Supports Intel Turbo Boost Technology 2.0 (The Intel Turbo Boost Technology 2.0 support depends on the CPU types.) |
| Chipset Intel B250 Chipset |
| Memory 2 x DIMMs, max.32GB, DDR4 2400/2133 MHz, non-ECC, un-buffered memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) (Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.) (Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.) |

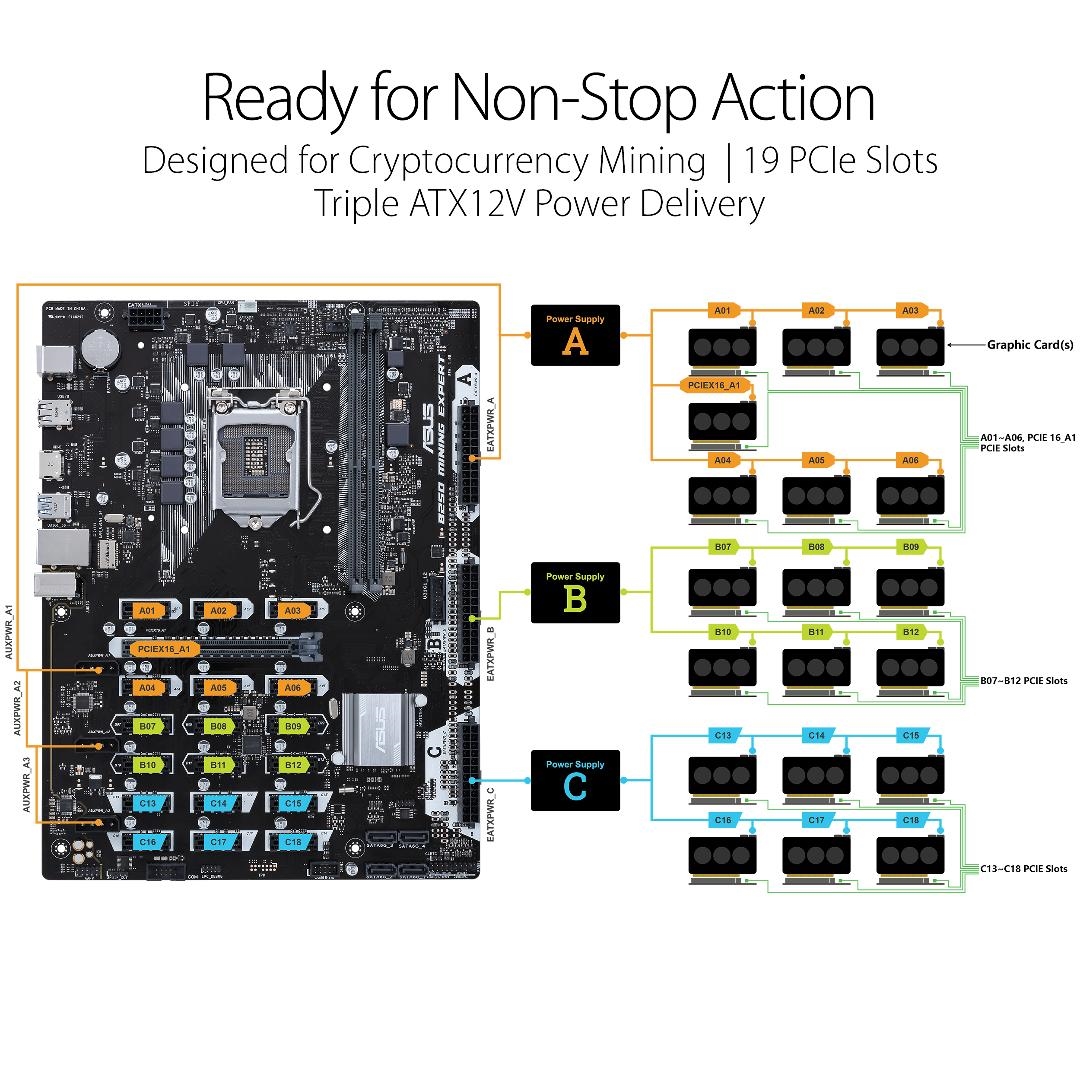

| Expansion Slots 1 x PCI Express x16 slot (at x16 mode) 18 x PCI Express x1 slots |
| VGA Integrated Graphics Processor - Intel HD Graphics support - Supports HDMI with max. resolution 4096x2160 at 24Hz / 2560x1600 at 60Hz - Maximum shared memory of 1024MB |
| Storage Intel B250 Chipset: 4 x Serial ATA 6.0 Gb/s connectors (gray) |
| LAN Intel I219V Gigabit LAN |
| Audio Realtek ALC887 8-channel high definition audio CODEC (Choose the chassis with HD audio module in front panel to support 8-channel audio output.) |
| USB Intel B250 Chipset - 6 x USB 3.1 Gen 1 ports (2 ports at mid-board, 4 ports at back panel, blue) - 4 x USB 2.0/1.1 ports (2 ports at mid-board, 2 ports at back panel) |

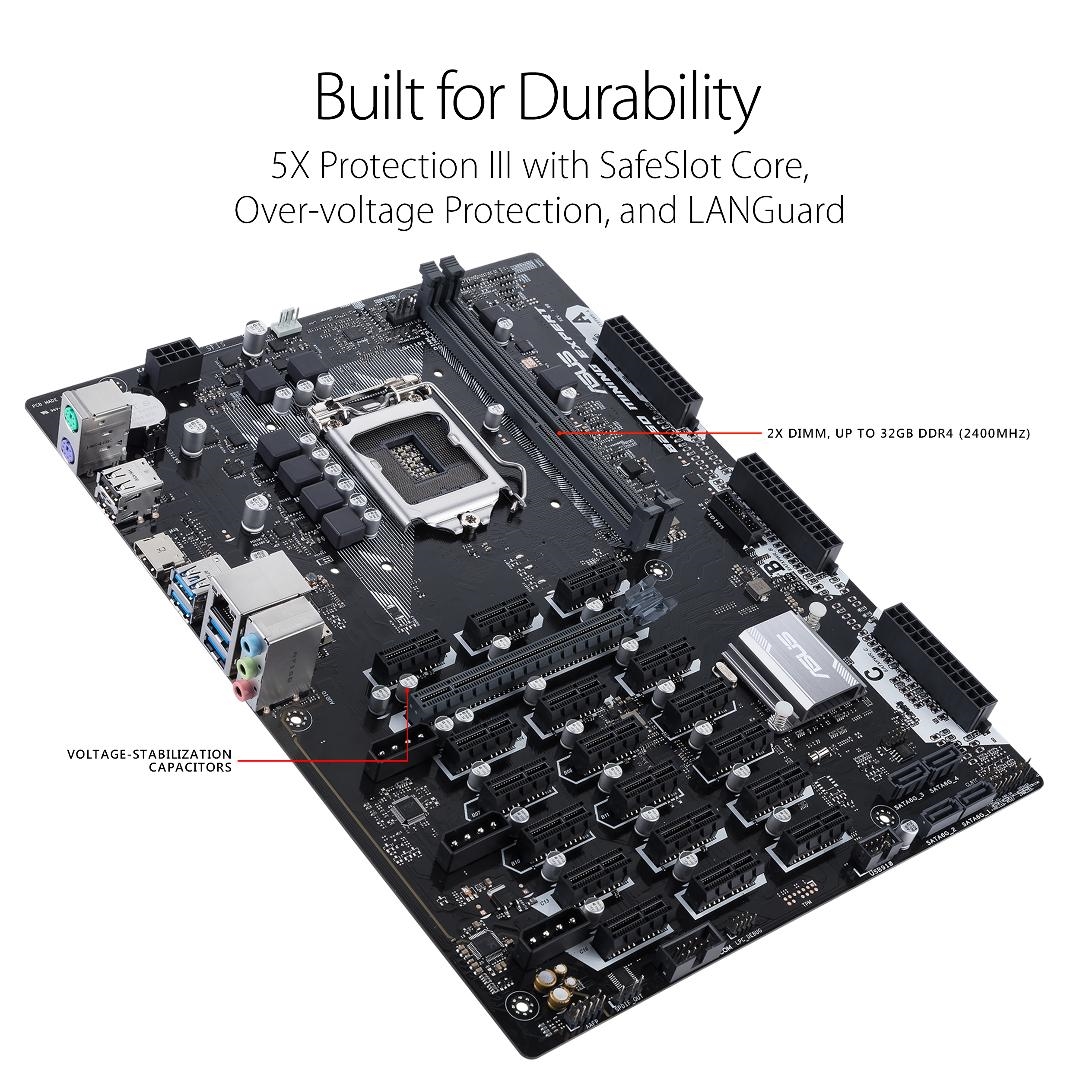

| ASUS Special Features ASUS 5X PROTECTION III - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage: - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS DIGI+ VRM: 6 Phase digital power design Q-Design: - ASUS Q-DIMM - ASUS Q-Slot |
| Back Panel I/O Ports 1 x PS/2 keyboard port 1 x PS/2 mouse port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x LAN (RJ-45) port 3 x Audio jacks support 8-channel audio output |
| Internal I/O Connectors 1 x USB 2.0/1.1 connectors support additional 2 USB 2.0/1.1 ports 1 x USB 3.1 Gen 1 connectors support additional 2 USB 3.1 Gen 1 ports 4 x SATA 6.0Gb/s connectors 1 x CPU Fan connector 1 x Chassis Fan connectors 1 x COM header 1 x Front panel audio connector 1 x S/PDIF Out connector 3 x 24-pin EATX Power connectors 3 x 4-Pin AUXPWR Connectors 1 x 8-pin EATX 12V Power connector 1 x CLRTC 1 x System Panel connector |
| BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Accessories 2 x Serial ATA 6.0Gb/s cables 1 x I/O shield 1 x Support DVD 1 x Users manual |
| Operating System Support Windows 10 (64-bit) Windows 7 (64-bit) Windows 7 64-bit is only supported when using 6th Generation Intel Processors |
| Form Factor ATX Form Factor, 12 inch x 9.1 inch (30.5cm x 23.1cm) |
| Item Dimension (L inchxW inchxH inch) 11 x 13 x 3 |
| Weight 3.00 lb |
| Warranty Information 90 Days Warranty (Manufacture) |
