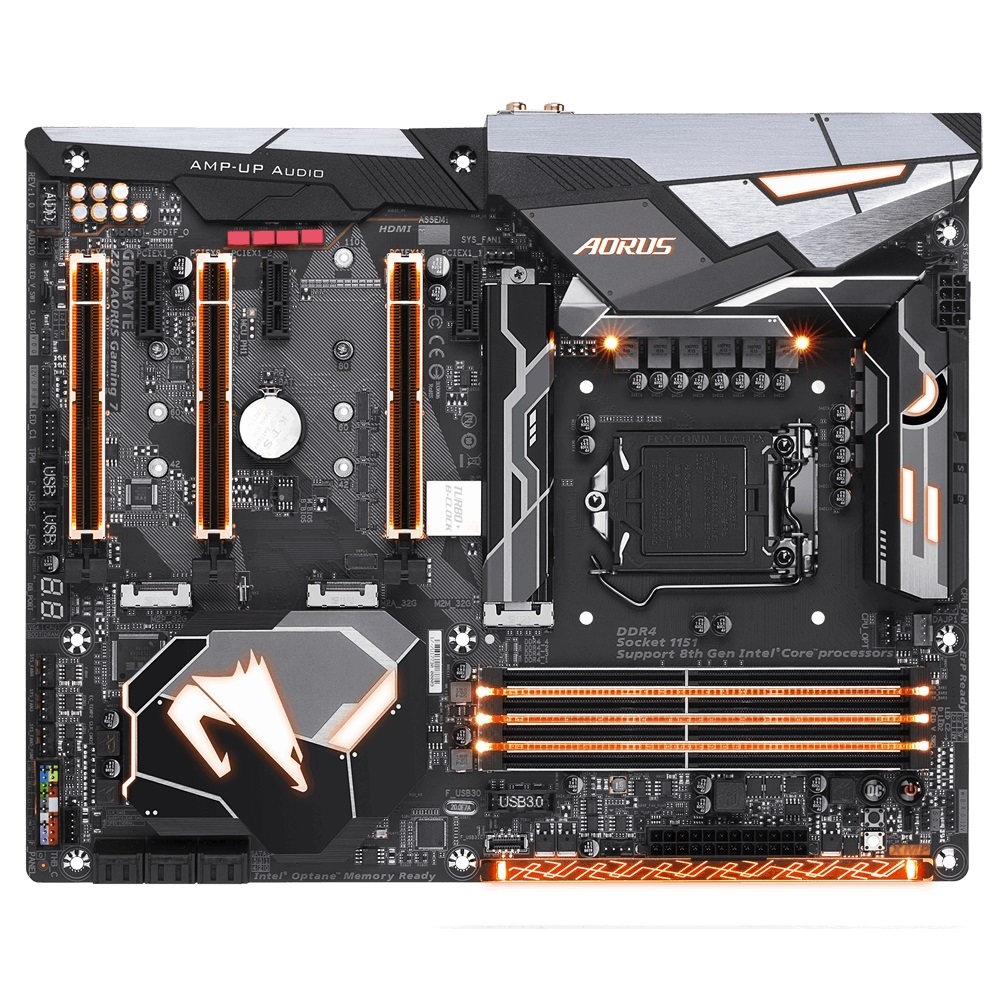

Gigabyte Z370 AORUS Gaming 7 LGA 1151 Intel Z370, Triple M.2 with Thermal Guard, Dual LAN with Killer+ Intel, Front rear USB 3.1 Gen 2 Type-C Coffee Lake / 8th generation Motherboard
$326.47
Was: $391.76
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12553
Brand:
Gigabyte
Mfg Sku:
Z370 AORUS GAMING 7
Share to:
Specification
Gigabyte Z370 AORUS Gaming 7 LGA 1151 Intel Z370 ATX with RGB Fusion Digital LED support, Triple M.2 with Thermal Guard, ESS SABRE 9018 DAC, Dual LAN with Killer+ Intel, Front rear USB 3.1 Gen 2 Type-C Coffee Lake / 8th generation Motherboard
Detail Specifications
| CPU Support for 8th Generation Intel CoreTM i7 processors/Intel CoreTM i5 processors/Intel CoreTM i3 processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset Intel Z370 Express Chipset |
| Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz -Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz -Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB |
| Audio Realtek ALC1220 codec ESS9018Q2C chip Support for Sound BlasterX 720o High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Rivet Networks KillerTM E2500 LAN chip (10/100/1000 Mbit) (LAN2) |
| Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) -For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) -The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) -The PCIEX4 slot shares bandwidth with the M2P_32G connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_32G connector. 3 x PCI Express x1 slots -The PCIEX1_3 slot shares bandwidth with the SATA3 1 connector. The SATA3 1 connector becomes unavailable when the PCIEX1_3 is populated. (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Storage Interface Chipset: 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G) (M2A_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P_32G) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 -Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors. Intel OptaneTM Memory Ready |
| Multi-Graphics Technology Support for NVIDIA Quad-GPU SLITM and 2-Way NVIDIA SLITM technologies Support for AMD Quad-GPU CrossFireTM and 3-Way/2-Way AMD CrossFireTM technologies |
| USB Chipset+2 ASMedia USB 3.1 Gen 2 Controllers: 1 x USB Type-CTM port with USB 3.1 Gen 2 support, available through the internal USB header 1 x USB Type-CTM port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel Chipset+Realtek USB 3.1 Gen 1 Hub: 2 x USB 3.1 Gen 1 ports available through the internal USB header Chipset: 5 x USB 3.1 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 1 x 3 Amp fan/water cooling pump header 1 x system fan/water cooling pump header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-CTM header, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x ThunderboltTM add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 1 x Clear CMOS button 1 x OC button 2 x temperature sensor headers |
| Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 5 x USB 3.1 Gen 1 ports 1 x USB Type-CTM port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| I/O Controller iTE I/O Controller Chip |
| H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control -Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOSTM PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features Support for APP Center -Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD at BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker USB DAC-UP 2 V-Tuner Support for Q-Flash Support for Xpress Install |
| Bundle Software Norton Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) |
| Operating System Support for Windows 10 64-bit |
| Form Factor ATX Form Factor, 30.5cm x 24.4cm |
| Item Dimension (L inchxW inchxH inch) 14 x 11 x 4 Weight 4.00lb Warranty Information 3 Years Manufacture Warranty |
