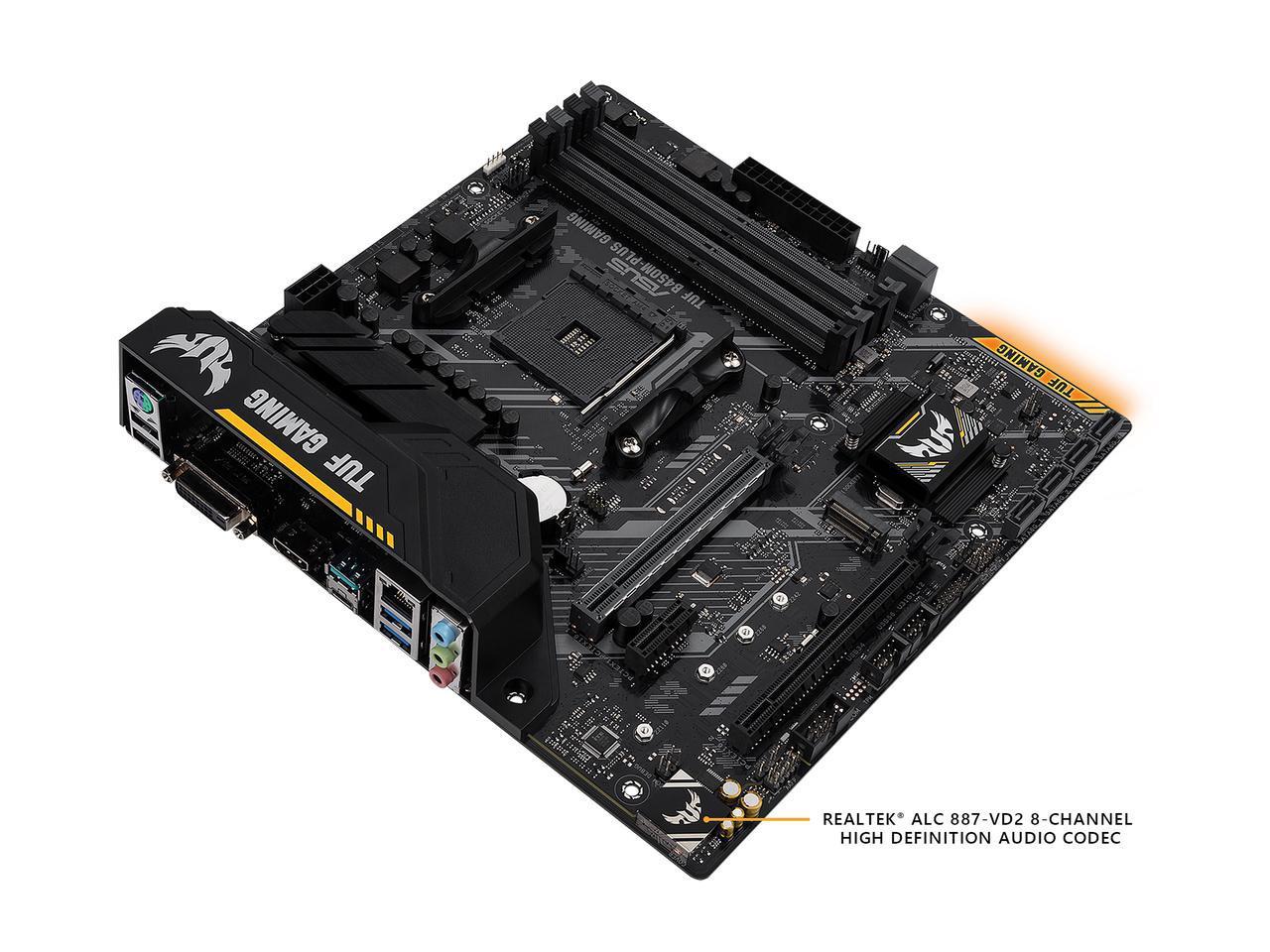

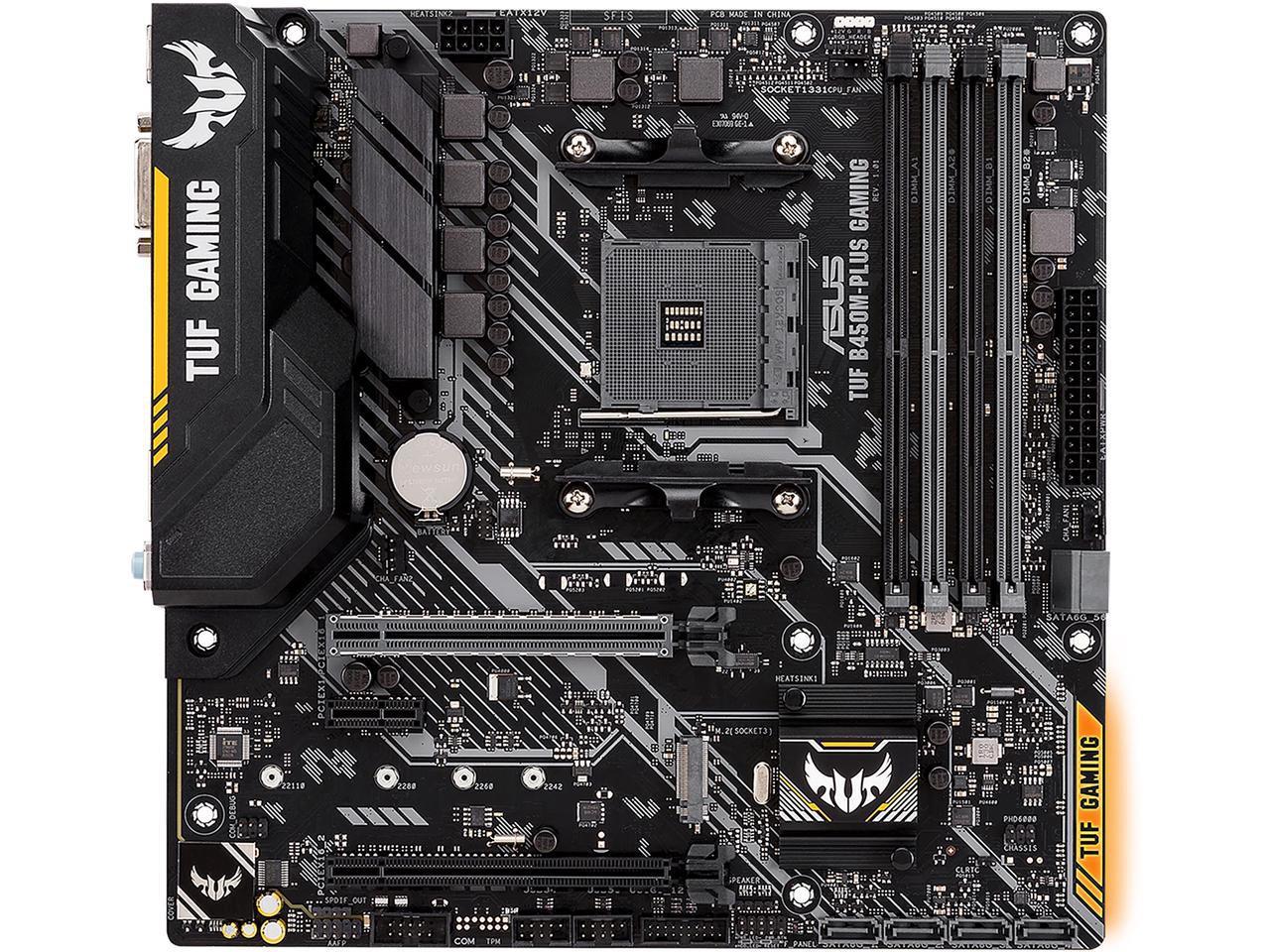

ASUS TUF B450M-PLUS GAMING AMD AM4 B450 Max. 64GB DDR4 USB 3.1 SATA 6Gb/s micro ATX AMD Ryzen 2nd gen. motherboard
$124.47
Was: $149.36
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12789
Brand:
ASUS TeK
Mfg Sku:
TUF B450M-PLUS GAMING
Share to:
Specification
ASUS TUF B450M-PLUS GAMING AMD AM4 B450 Max. 64GB DDR4 USB 3.1 SATA 6Gb/s micro ATX AMD Ryzen 2nd gen. motherboard
Detail Specifications
| CPU AMD AM4 Socket AMD RyzenTM2nd Generation/RyzenTMwith RadeonTMVega Graphics/RyzenTM1st Generation Processors Supports CPU up to 8 cores Refer to www.asus.com for CPU support list |
| Chipset AMD B450 |
| Memory AMD RyzenTM2nd Generation/ RyzenTMwith RadeonTMVega Graphics/ RyzenTM1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
| Graphic Integrated in the AMD RyzenTMwith RadeonTMVega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 at 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz |
| Multi-GPU Support Supports AMD CrossFireXTMTechnology |
| Expansion Slots AMD RyzenTM2nd Generation/RyzenTM1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD RyzenTMwith RadeonTMVega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 1 x PCIe 2.0 x1 |
| Storage AMD RyzenTM2nd Generation/ RyzenTMwith RadeonTMVega Graphics/ RyzenTM1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset : 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN Realtek RTL8111H TUF LANGuard |
| Audio Realtek ALC887-VD2 8-Channel High Definition Audio CODEC Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports AMD RyzenTM2nd Generation/ RyzenTMwith RadeonTMVega Graphics/ RyzenTM1st Generation : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD RyzenTM2nd Generation/ RyzenTMwith RadeonTMVega Graphics/ RyzenTM1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, ) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS DIGI+ VRM: 6 Phase digital power design AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution and MOS Heatsink - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 1 (blue) USB Type-CTM, 2 x USB 2.0 2 x USB 3.1 Gen 1 (blue) 3 x Audio jack(s) |
| Internal I/O Ports 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
| Accessories Users manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search |
| Manageability WOL by PME, PXE |
| Operating System Windows 10 64-bit |
| Form Factor Micro ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Item Dimension (L inchxW inchxH inch) 11 x 11 x 3 |
| Weight 3.00lb |
| Warranty Information 3 Years Manufacture |
