Synology NAS DS118 1Bay DiskStation (Diskless) Network Attached Storage
$245.52
Was: $294.62
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12884
Brand:
Synology
Mfg Sku:
DS118
Share to:
Specification
Synology NAS DS118 1Bay DiskStation (Diskless) Network Attached Storage
Detail Specifications
| Hardware Specifications CPU CPU Model:Realtek RTD1296 CPU Architecture:64-bit CPU Frequency:Quad Core 1.4 GHz Hardware Encryption Engine:Yes Hardware Transcoding Engine:10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1maximum resolution: 4K (4096 x 2160) maximum frame rate per second (FPS): 30 |
| Memory System Memory:1 GB DDR4 |
| Storage Drive Bays:1 Compatible Drive Type :3.5" SATA HDD 2.5" SATA HDD (with optional 2.5" Disk Holder) 2.5" SATA SSD (with optional 2.5" Disk Holder) Maximum Internal Raw Capacity:12 TB (12 TB drive x 1) (Capacity may vary by RAID types) Maximum Single Volume Size:108 TB Notes:"Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum single volume size is not directly related to the maximum raw capacity. |

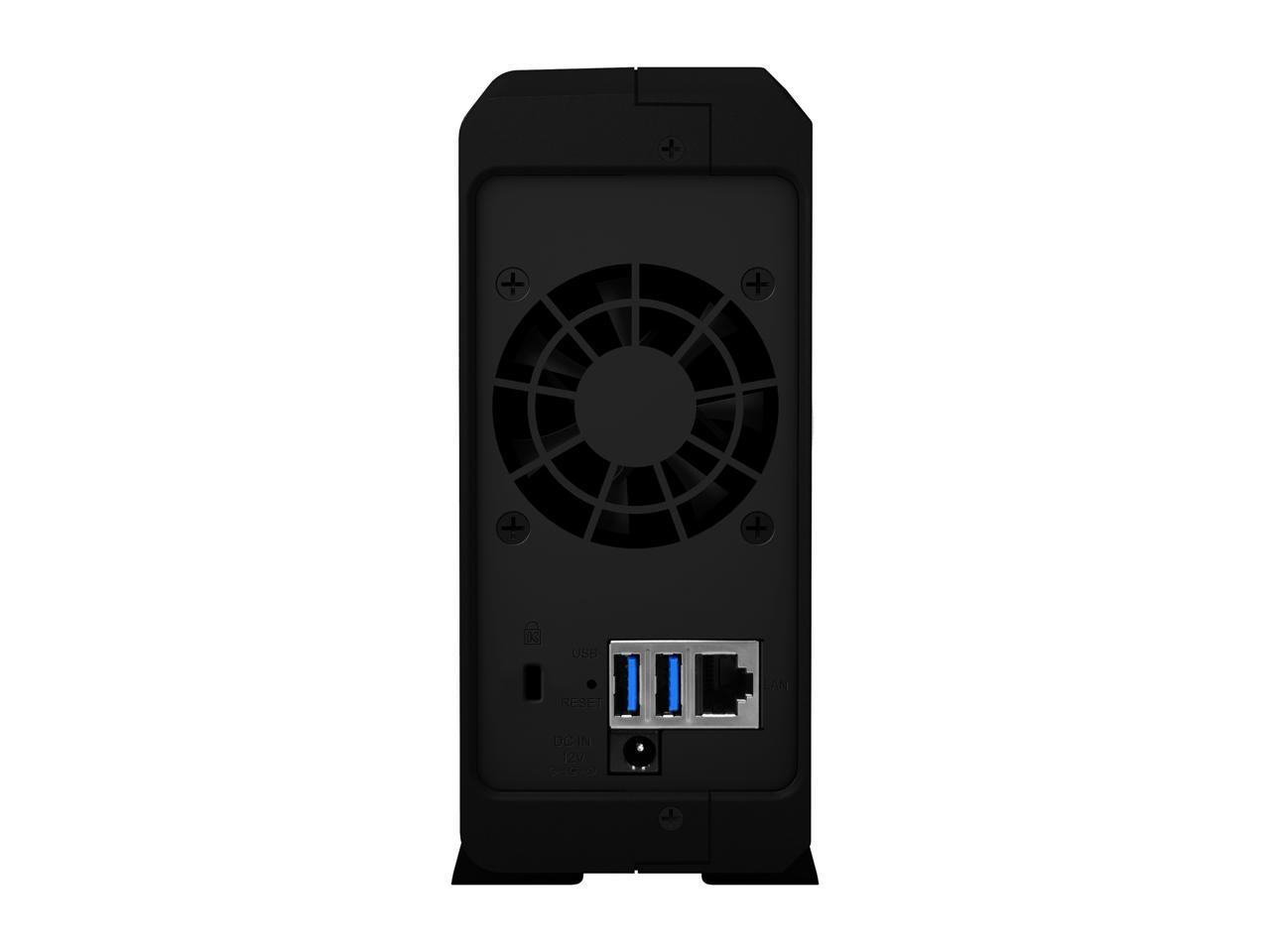

| External Ports RJ-45 1GbE LAN Port:1 USB 3.0 Port:2 |
| File System Internal Drives:EXT4 External Drives:EXT4 EXT3 FAT NTFS HFS+ exFAT Notes:exFAT Access is purchased separately in Package Center. |
| Appearance Size (Height x Width x Depth):166 mm x 71 mm x 224 mm Weight:0.7 kg |
| Others System Fan:60 mm x 60 mm x 1 pcs Fan Speed Mode:Full-Speed Mode Cool Mode Quiet Mode Low-power Mode Brightness adjustable front LED indicators:Yes Power Recovery:Yes Noise Level:16.7 dB(A) Scheduled Power On/Off:Yes Wake on LAN/WAN:Yes Power Supply Unit / Adapter:36W AC Input Power Voltage:100V to 240V AC Power Frequency:50/60 Hz, Single Phase Power Consumption:9.4 W (Access) 4.22 W (HDD Hibernation) British Thermal Unit:32.1 BTU/hr (Access) 14.41 BTU/hr (HDD Hibernation) |
| Environment Temperature Operating Temperature:5oC to 40oC (40oF to 104oF) Storage Temperature:-20oC to 60oC (-5oF to 140oF) Relative Humidity:5% to 95% RH Certification:FCC Class B CE Class B BSMI Class B Warranty:2 Years Notes:Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). |
| DSM Specifications Storage Management Maximum Internal Volume Number:1 Maximum iSCSI Target Number:10 Maximum iSCSI LUN:10 SSD TRIM:Yes Supported RAID Type:Basic |
| File Sharing Capacity Maximum Local User Accounts:2048 Maximum Local Groups:256 Maximum Shared Folder:256 Maximum Shared Folder Sync Tasks:2 Maximum Concurrent CIFS/AFP/FTP Connections:200 Windows Access Control List (ACL) Integration:Yes NFS Kerberos Authentication:Yes Log Center:Yes Syslog Events per Second:100 |
| Add-on Packages Chat:Yes Maximum Users:500 Notes:The number of concurrent HTTP connections for Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached. Cloud Station Server:Yes Maximum Number of Concurrently Connected Devices:200 Maximum Number of Synced Files (ext4):100,000 / single file reaction time 617 ms Notes:The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing. File reaction time refers to the preparation time required for other devices to start downloading a 1KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing. Non-encrypted shared folders were used during the aforementioned testing. Download Station:Yes Maximum Concurrent Download Tasks:30 exFAT Access (optional):Yes Media Server:Yes DLNA Compliance:Yes Office:Yes Maximum Users:100 Maximum Simultaneous Editing Users:30 Notes:CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM Surveillance Station:Yes Maximum IP cam (Licenses required):15 (including 2 Free License) Total FPS (H.264):450 FPS at 720p (1280x720) 180 FPS at 1080p (19201080) 110 FPS at 3M (2048x1536) 80 FPS at 5M (2591x1944) 40 FPS at 4K (3840x2160) Total FPS (H.265):450 FPS at 720p (1280x720) 450 FPS at 1080p (19201080) 210 FPS at 3M (2048x1536) 120 FPS at 5M (2591x1944) 60 FPS at 4K (3840x2160) |
| Total FPS (MJPEG):210 FPS at 720p (1280x720) 70 FPS at 1080p (19201080) 50 FPS at 3M (2048x1536) 30 FPS at 5M (2591x1944) Notes:Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. Video Station:Yes Video Transcoding:4K Group 3 Maximum Transcoding Channel Number:1 channel, 30 FPS at 4K (4096 x 2160), H.265 (HEVC), 10-bit or 1 channel, 30 FPS at 1080p (19201080), H.264 (AVC)/H.265 (HEVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1 VPN Server:Yes Maximum Connections:5 |

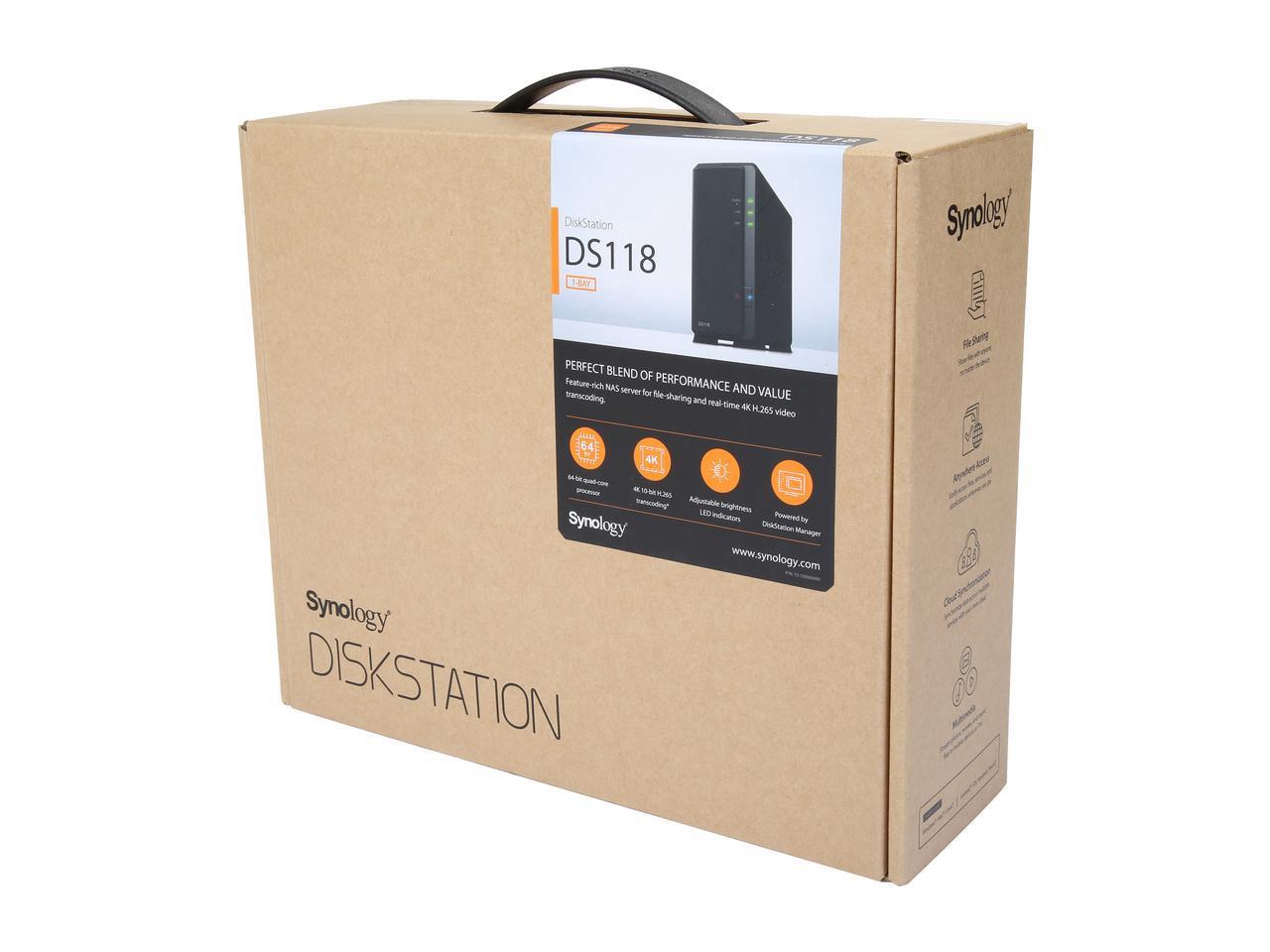

| Environment and Packaging Environment:RoHS Compliant Packaging Content:Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1 Optional Accessories:Surveillance Device License Pack Disk Holder: Type C VS360HD VS960HD |
| Item Dimension (L inchxW inchxH inch) 11 x 9 x 4 |
| Weight 3.35 lb |
| Warranty Information 2 Years Manufacture |
