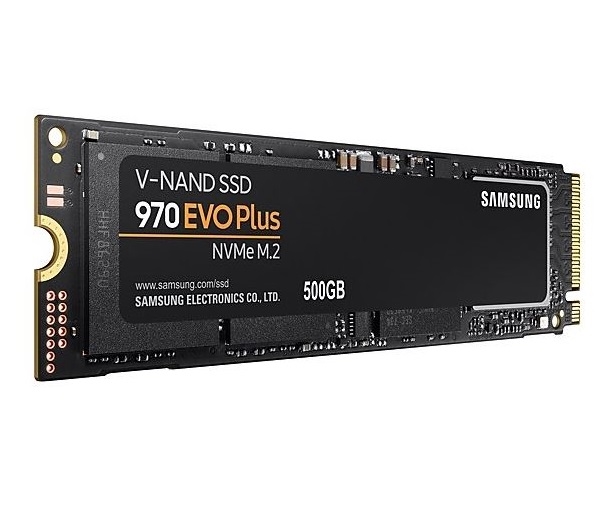

Samsung 970 EVO PLUS 500GB NVM Express - 3.5K Read / 3.2K Write M.2 2280 V-NAND MLC PCI Express MZ-V7S500B/AM internal Solid State Drive
$172.76
Was: $207.31
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
14009
Brand:
Samsung
Mfg Sku:
MZ-V7S500B/AM
Share to:
Specification
Samsung 970 EVO PLUS 500GB NVM Express - 3.5K Read / 3.2K Write M.2 2280 V-NAND MLC PCI Express MZ-V7S500B/AM internal Solid State Drive
Detail Specifications
| Type Product Type SSD Series 970 EVO Plus Usage Application Client PCs Interface PCIe Gen 3.0 x 4, NVMe 1.3 |
| Application Consumer Yes |
| Storage Capacity 500GB (1GB is equal to 1 Billion byte by IDEMA) Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Key Features Sequential Read Speed Up to 3,500 MB/s ( Performance may vary based on system hardware and configuration) Sequential Write Speed Up to 3,200 MB/s ( Performance may vary based on system hardware and configuration) Random Read Speed Random Read (4KB, QD32): Up to 480,000 IOPS, Random Read (4KB, QD1): Up to 19,000 IOPS (Performance may vary based on system hardware and configuration) Random Write Speed Random Write (4KB, QD32): Up to 550,000 IOPS Random Write (4KB, QD1): Up to 60,000 IOPS (Performance may vary based on system hardware and configuration) Controller Samsung Phoenix Controller NAND Flash Samsung V-NAND 3-bit MLC Cache Memory Samsung 512MB Low Power DDR4 SDRAM Trim Support Supported AES Encryption AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) S.M.A.R.T. Support Supported GC (Garbage Collection) Auto Garbage Collection Algorithm WWN Support Not supported Device Sleep Mode Support Yes Temperature proof Yes NVMe Yes Gaming SSDs Yes |
| General Average Power Consumption (system level) Average: 5.8 W Maximum: 9 W (Burst mode) (Actual power consumption may vary depending on system hardware and configuration) Power consumption (Idle) Max. 30 mW (Actual power consumption may vary depending on system hardware and configuration) Voltage 3.3 V +/- 5 % Allowable voltage Reliability (MTBF) 1.5 Million Hours Reliability (MTBF) |
| Environmental Specs Operating Temperature 0 - 70oC Operating Temperature Shock 1,500 G and 0.5 ms (Half sine) |
| Form Factor Product M.2 (2280) |
| Software Management SW Magician Software for SSD management |
| Item Dimension (L"xW"xH") 6 x 4 x 1 Weight 1.00 LB Warranty Information 5 years Manufacture Warranty |
