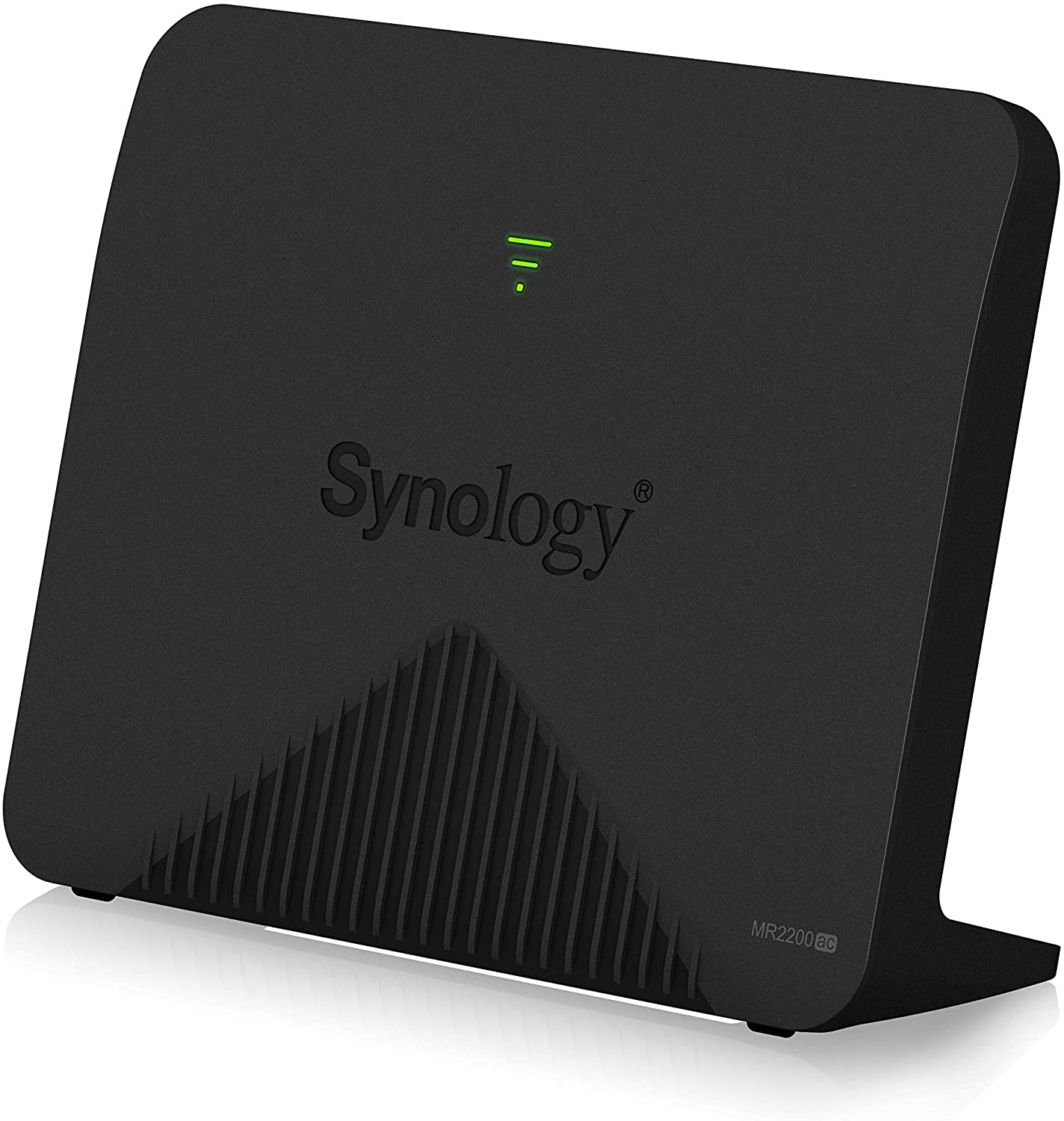

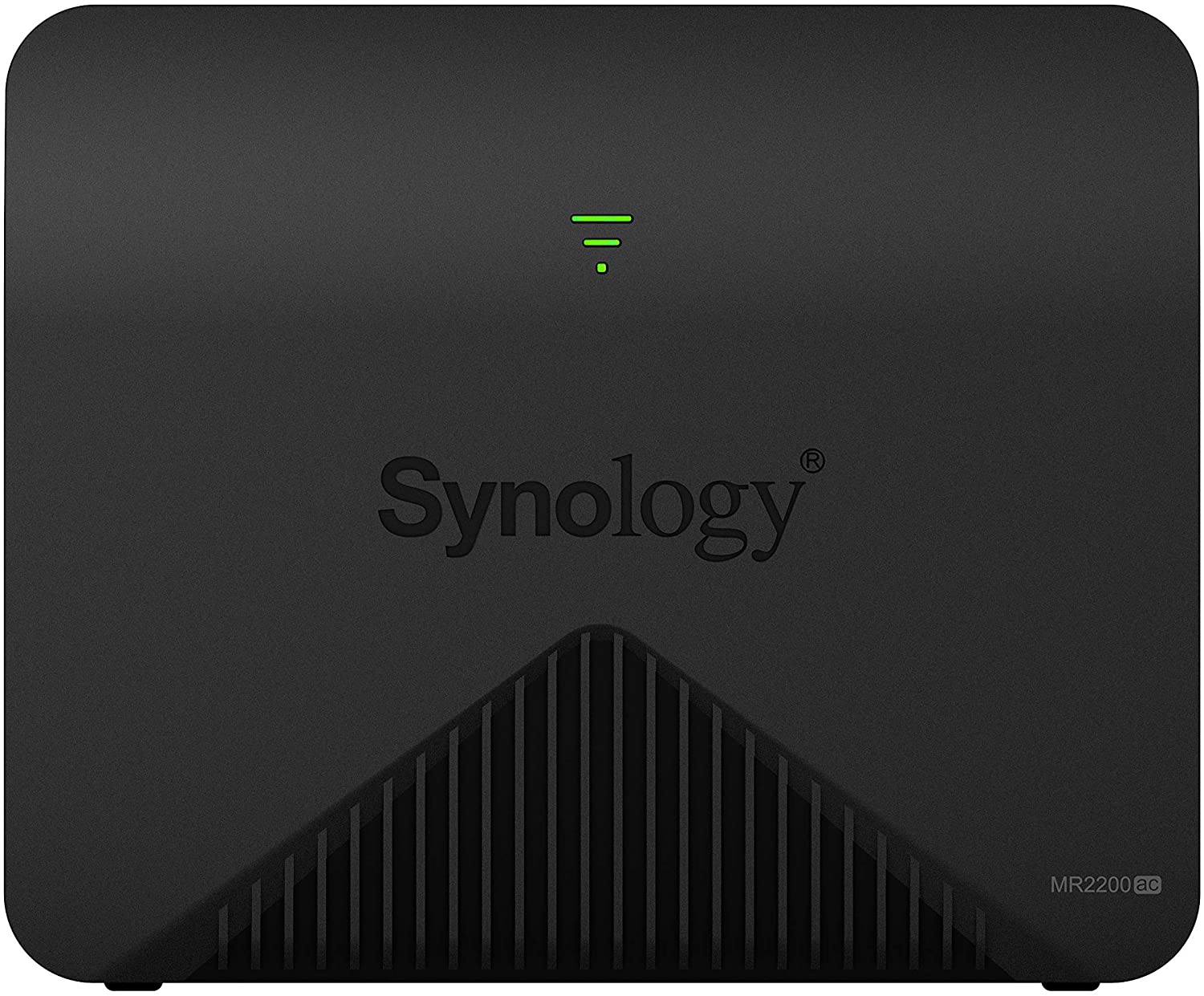

Synology MR2200AC (GL) Mesh Wi-Fi router
$194.53
Was: $233.44
Availability:
In Stock
Richmond BC Warehouse:
0
Toronto ON Warehouse:
0
Product Code:
14143
Brand:
Synology
Mfg Sku:
MR2200AC (GL)
Share to:
Specification
Synology MR2200AC (GL) Mesh Wi-Fi router
Detail Specifications
| Hardware Specifications CPU Quad core 717 MHz Memory 256 MB DDR3 Antenna type 2x2 MIMO high-performance internal antenna (2.4 GHz / 5 GHz) LAN port Gigabit (RJ-45) x 1 WAN port Gigabit (RJ-45) x 1 External Ports USB 3.0 x 1 (5V, 0.9A power output) Button and switch WPS, Power, Reset, Wi-Fi On/Off Temperature Operating Temperature: 5oC to 40oC (40oF to 104oF) Storage Temperature: -20oC to 60oC (-5oF to 140oF) Relative Humidity: 5% to 95% RH Certification FCC CE BSMI VCCI Class B RCM KC iDA TELEC JATE IC Wi-Fi Certification CE FCC NCC RCM iDA TELEC KC IC |
| Wireless IEEE 802.11ac IEEE 802.11a/b/g/n/ac Simultaneous tri-band Wi-Fi 5GHz-1: 867Mbps 5GHz-2: 867Mbps 2.4GHz: 400Mbps IEEE 802.11ac wave 2 MU-MIMO Wi-Fi Encryption WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE) Wi-Fi MAC address filter Yes Maximum MAC filters 64 Seamless roaming 802.11k/v/r standard support Beamforming Yes DFS Yes Schedulable Wi-Fi Yes Guest Network Yes Guest Portal: Yes Customized page style: Yes Connection time limit: Yes Password Rotation: Yes WPS 2.0 (Wi-Fi Protected Setup 2.0) Yes 3G/4G Dongle and Tethering Yes Maximum connected devices 90 Wi-Fi Point Yes Primary Wi-Fi Point Yes |
| Network Internet connection Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR) 3G/4G LTE dongle: Yes Android tethering: Yes iPhone tethering: Yes Note: iPhone tethering only supported your Synology Router running SRM 1.2 or above Operating mode Wireless Router Wireless AP Port forwarding Setup via manual management or UPnP Maximum port forwarding rules: 64 Maximum UPnP rules: 64 Port triggering Yes Maximum port triggering rules: 32 Minimum port triggering timeout: 30s Maximum port triggering timeout: 3600s DMZ Yes IPv6 IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLETs IPv6 DHCP Server/client mode, client list, MAC address reservation Maximum DHCP reservations: 500 LAN/WLAN IGMP snooping Yes VPN VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site) VPN client (PPTP, OpenVPN, L2TP/IPSec) VPN Pass-through (PPTP, IPSec, L2TP) Policy route, Static route, Network Address Translation (NAT), PPPoE relay Yes Maximum IPv4 static routes: 100 Maximum IPv6 static routes: 100 Diagnosis tools Ping Traceroute |
| Safe Access Parental Control User Profile: 15 Network Profile: 2 Customized Internet schedule: Yes Time Quota: Yes IPv4/IPv6 DNS-based web filter: Schedule Database Request to unblock Customized allow/block list: M Maximum blocked URLs: 100 Maximum allowed URLs: 100 Pause Internet: Yes Reward: Yes Security Safe Search: Bing, Google, YouTube Threat Intelligence Database: support in IPv4 and IPv6 Google Safe Browsing: support in IPv4 and IPv6 Database auto update: Threat Intelligence Database, Google Safe Browsing , DNS-based web filter |
| Traffic Control Internet ban, device speed and priority Yes Application layer (L7) quality of service (QoS) Yes Maximum device rules: 64 Maximum application rules per device: 32 Traffic Monitor Yes Live view: Yes Historical statistics: Daily, Weekly, Monthly, Annual Website history: Yes Application Detection: Yes Traffic Report Yes Country auto update: Yes Schedulable: Yes Traffic analysis period: Daily, Weekly, Monthly, Annual Export formats: .CSV, .HTML |
| VPN Plus Server VPN Plus Server Easily create and manage secure VPN access through a web browser or client. Supports various VPN services - Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP Maximum Client VPN Access License: 10 Site-to-Site VPN: Yes Maximum Site-to-Site VPN Tunnels: 4 Remote Desktop (RDP + VNC): 3 Connection List: Yes Log: Yes Report: Yes |
| Package Center Cloud Station Server Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files Maximum Concurrent File Transfers: 64 Note: Cloud Station ShareSync is not supported DNS Server Helps users find and translate domain names into IP addresses Download Station Supported download protocols: BT/HTTP/FTP/NZB/eMule Maximum concurrent download tasks: 50 Maximum concurrent BT download tasks: 20 Media Server (DLNA/UPnP) Media indexing DLNA Compliance PS3/PS4/Xbox 360/Xbox One supported RADIUS Server Provides centralized authentication, authorization, and accounting for wireless network access |
| Mobile Apps DS router (Android/iOS) First Time Installation Network overview Wi-Fi management Wi-Fi system topology Safe Access Traffic Control Network security (firewall, port forwarding, Internet ban) Wake on LAN System Update VPN Plus (Android/iOS) Yes DS cloud (Android/iOS) Yes DS get (Android) Yes DS file (Android/iOS) Yes |
| Management Operating system Synology Router Manager (SRM) Free OS upgrade Yes Anywhere access to SRM Synology QuickConnect and Dynamic DNS (DDNS) Security Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication Wake on LAN (WOL) Yes WOL over QuickConnect: Yes Maximum connected devices: 100 Notification Email, SMS, push service (via DS router) SSH Yes SNMP Yes Configuration backup and restore Yes User account management Yes Printer server Maximum printer: 1 |
| USB/SD Card File Service File System EXT4, FAT, NTFS, HFS+ Access support File explorer (via LAN only) Web browsers: Chrome, Firefox, Internet Explorer: 11 onwards, Safari 11 onwards Mobile device: DS file Protocol support Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV Apple Time Machine Yes Shared Folder privileges Yes Storage hibernation Yes |
| Environment and Packaging Environment RoHS Compliant Packaging Content Main Unit X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1 |
| Item Dimension (L"xW"xH") 10 x 14 x 12 Weight 1.3 lbs Warranty Information 2 Years Manufacture |
