Fractal Design Ion+ Platinum 560W PSU - 80 PLUS Platinum - FD-PSU-IONP-560P-BK-US - ATX - High performance Power Supply - Fully Modular
$133.54
Was: $160.25
Availability:
In Stock
Richmond BC Warehouse:
0
Toronto ON Warehouse:
0
Product Code:
14183
Brand:
Fractal Design
Mfg Sku:
FD-PSU-IONP-560P-BK-US
Share to:
Specification
Fractal Design Ion+ Platinum 560W PSU - 80 PLUS Platinum - FD-PSU-IONP-560P-BK-US - ATX - High performance Power Supply - Fully Modular
- Zero RPM - Silent 140 mm fan FDB Bearings - UltraFlex Cables
Detail Specifications
| Specifications 80 PLUS Certification Platinum |
| Modular cables Fully modular |

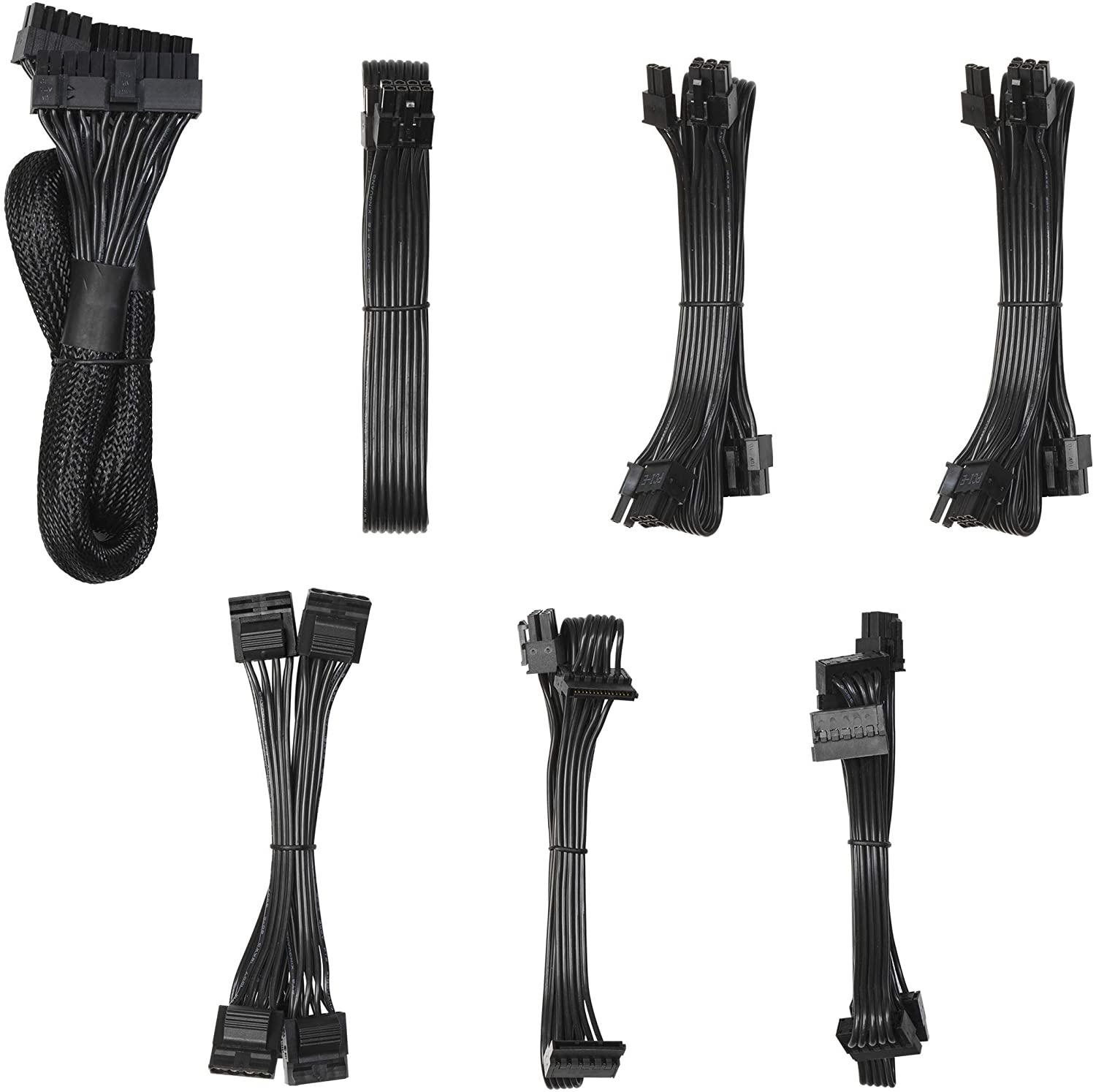

| Cable type Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire |
| Fan type Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load 50oC |
| Semi-passive operation Yes, user selectable (Zero RPM) |
| Sleep State Compliance C6/C7 |
| Capacitors Japanese |
| Protection features Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals Certifications CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load 100,000 hours |
| Input voltage 100-240V AC |
| Input frequency 50-60 Hz |
| Input current 10A/5A |
| Number of 12V rails 1 |
| PSU specification compliance N/A |
| Standby efficiency ErP 2013 (<0.45W 230 VAC, 45 mA load on +5Vsb) |
| Connectors ATX 24-pin 1 |
| ATX12V 4+4 pin / EPS12V 8-pin 1 |
| PCIe 6+2 pin 4 |
| SATA 6 |
| Peripheral 4 |
| Cable configuration (length between connectors) ATX 24-pin 600 |
| ATX12V 4+4 pin 700 |
| EPS12V 8-pin N/A |
| PCIe 6+2 pin 550+120 mm x2 |
| SATA 400+120+120+120, 650+120 |
| Peripheral 400+120+120+120 |
| DC output 3.3 V 20A |
| 5 V 20A |
| 3.3 V and 5 V combined 110W |
| 12 V 46.6A |
| 12 V 46.6A |
| 5 V Standby (+5 Vsb) 3A |
| Total Power 560W |
| Item Dimension (L inchxW inchxH inch) 13 x 9 x 5 |
| Weight 5.72 LB |
| Warranty Information 10 YEARS Manufacture Warranty |
