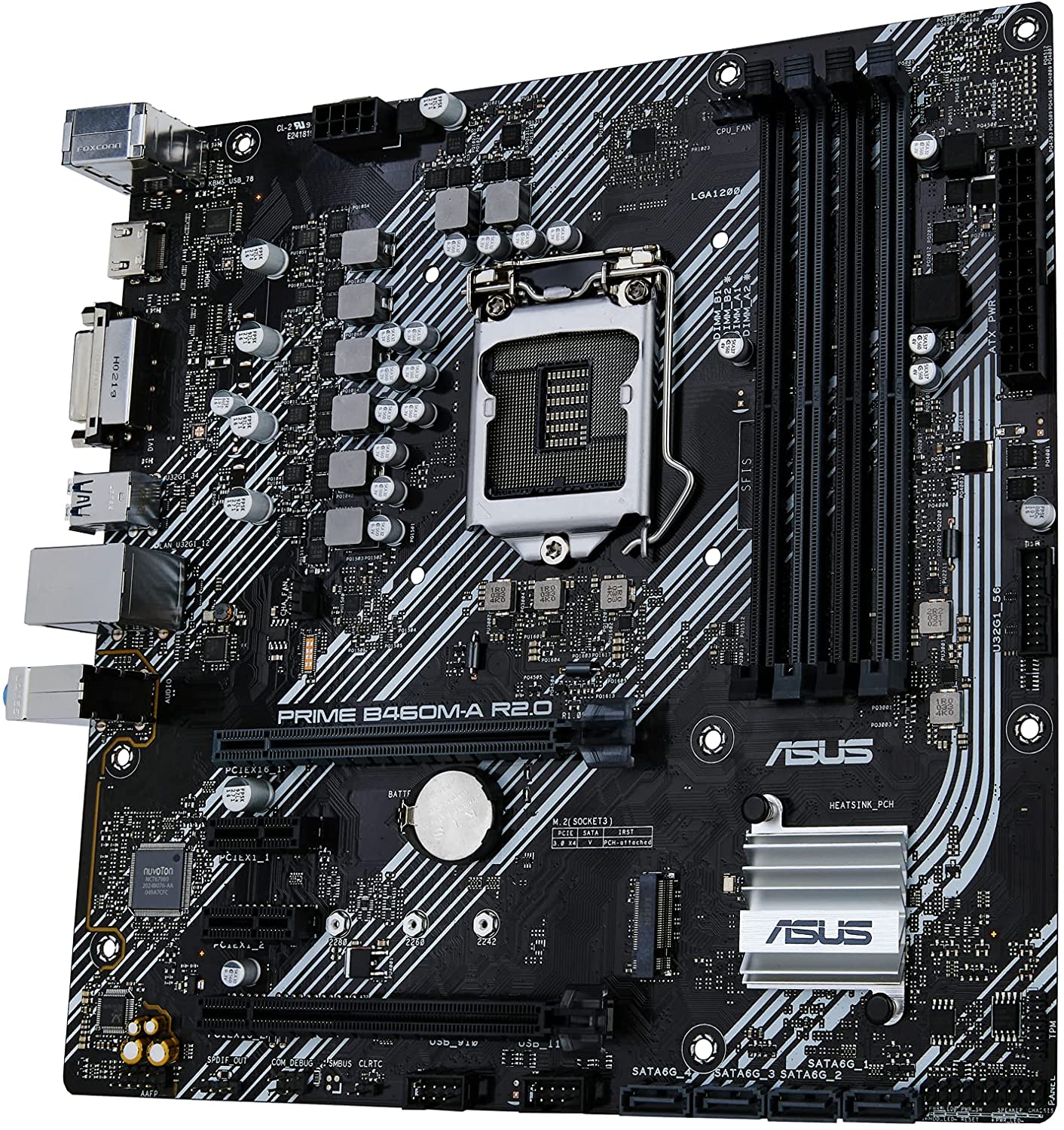

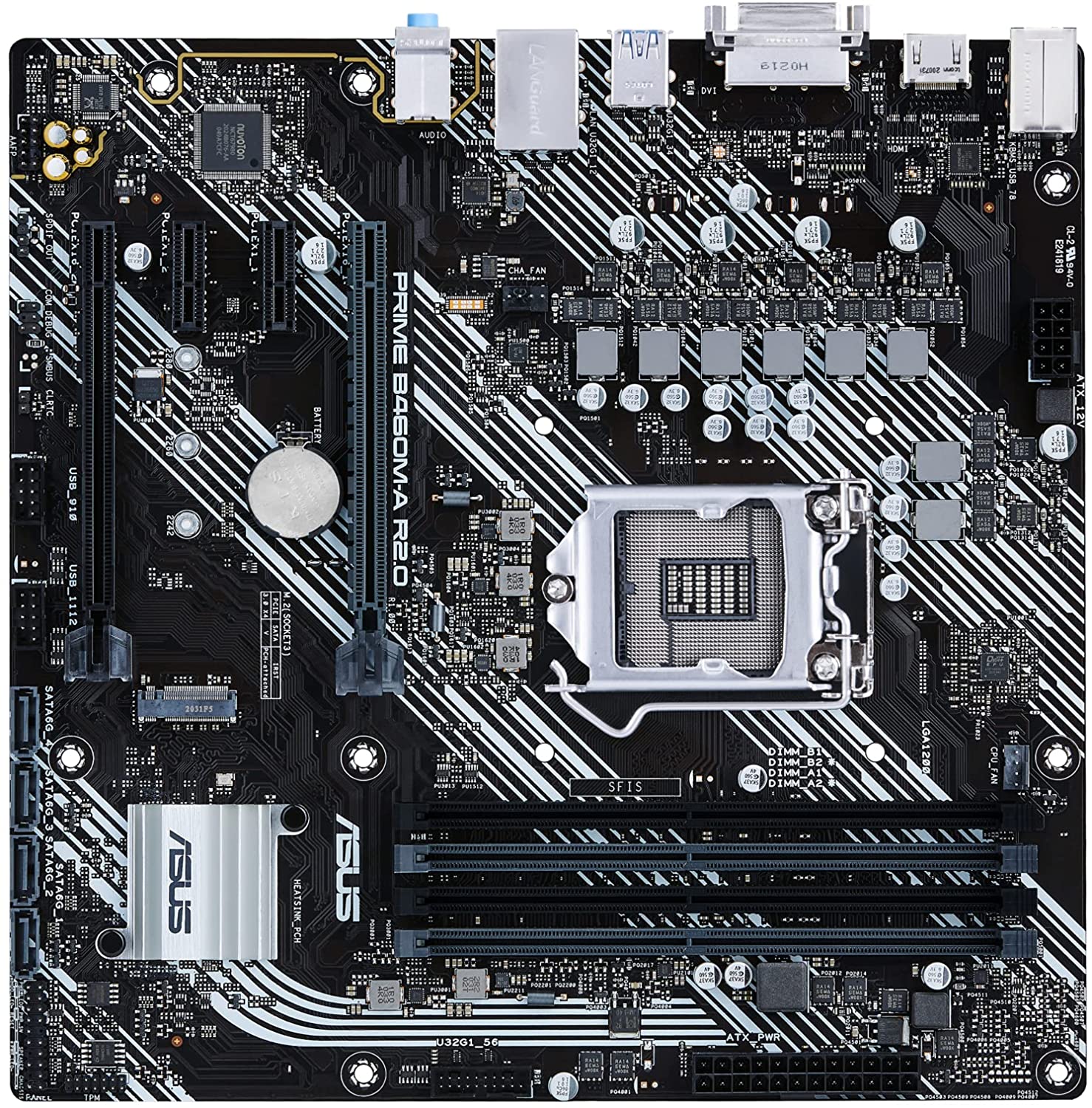

ASUS Prime B460M-A R2.0 Intel H470 (LGA 1200) for Intel 11th gen & 10th Gen CPUs, 8 Power Stages / Intel 1 Gb Ethernet / HDMI / DVI / M.2 Slot / 4 SATA 6Gb/s / Front USB 3.2 Gen 1 / mATX Desktop Motherboard
$132.84
Was: $159.41
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
14418
Brand:
ASUS TeK
Mfg Sku:
PRIME B460M-A R2.0
Share to:
Specification
ASUS Prime B460M-A R2.0 Intel H470 (LGA 1200) for Intel 11th gen & 10th Gen CPUs, 8 Power Stages / Intel 1 Gb Ethernet / HDMI / DVI / M.2 Slot / 4 SATA 6Gb/s / Front USB 3.2 Gen 1 / mATX Desktop Motherboard
UPC: 195553241380
Detail Specifications
| CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 - Refer to www.asus.com for CPU support list. -- Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset Intel H470 Chipset |
| Memory 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem - 10th Gen Intel CoreTM i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. - 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. - Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics 1 x DVI-D - Graphics specifications may vary between CPU types. - Only Intel 11th Gen processors support HDMITM 2.0 with max. resolution of 4K at 60Hz, others will only support HDMITM 1.4 with max. resolution of 4K at 30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel 11th and 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel11th Gen processors support PCIe 4.0 x16 mode - Intel10th Gen processors support PCIe 3.0 x16 mode Intel H470 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports Raid 0,1,5,10 Intel OptaneTM Memory Ready |
| Ethernet ASUS LANGuard |
| USB Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - LED-illuminated audio trace path design - Premium Japanese audio capacitors - Dedicated audio PCB layers -- A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DVI-D port 1 x HDMI port 1 x Intel I219V 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Intrernal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot |
| Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM FAN Xpert - EZ update ASUS CPU-Z Norton Anti-virus software (Free Trial version) DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability WOL by PME, PXE |
| Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
| Form Factor microATX 24.4cm x 24.4cm |
| Item Dimension (L inchxW inchxH inch) 11 x 11 x 3 Weight 3.00 lb Warranty Information 3 Years Manufacture Warranty |
