Gigabyte AMD FM2+ GA-F2A88XN-WIFI A88X DDR3 SATA PCI Express DVI-D/HDMI Mini-ITX Retail
$139.70
Was: $167.64
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
1443
Brand:
Gigabyte
Mfg Sku:
GA-F2A88XN-WIFI
Share to:
Specification

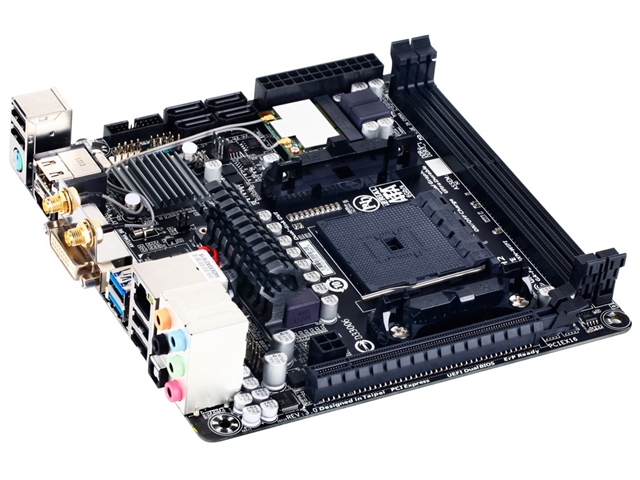

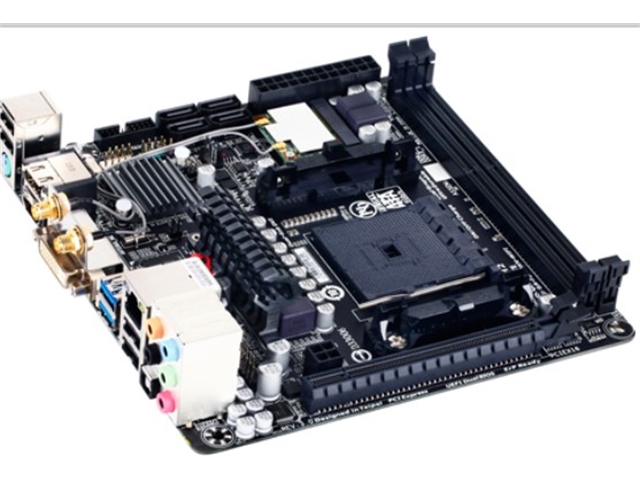

Gigabyte Motherboard GA-F2A88XN-WIFI AMD FM2+ A88X DDR3 SATA PCI Express DVI-D/HDMI Mini-ITX Retail
Detail Specifications
| APU FM2+ Socket: 1.AMD A series processors 2.AMD Athlon series processors Chipset 1.AMD A88X |
| Memory 1.2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory 2.Dual channel memory architecture 3.Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules 4.Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics APU with integrated AMD Radeon HD 8000/7000 series graphics: 1.1 x DVI-D port, supporting a maximum resolution of 2560x1600 2.2 x HDMI ports, supporting a maximum resolution of 4096x2160 3.Maximum shared memory of 2 GB |
| Audio 1.Realtek ALC892 codec 2.High Definition Audio 3.2/4/5.1/7.1-channel 4.Support for S/PDIF Out LAN 1.Realtek GbE LAN chip (10/100/1000 Mbit) |
| Wireless Communication module 1.Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band 2.Bluetooth 4.0, 3.0+HS, 2.1+EDR 3.Support for 11ac wireless standard and up to 867 Mbps data rate ( Actual data rate may vary depending on environment and equipment.) (Supports Windows 7/8/8.1 only.) |
| Expansion Slots 1.1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) (To support PCI Express 3.0, you must install an FM2+ APU.) 2.1 x mini-PCI Express slot for the wireless communication module |
| Multi-Graphics Technology 1.Support for AMD Dual Graphics technology ( Only A series APUs support AMD Dual Graphics.) Storage Interface Chipset: 1.4 x SATA 6Gb/s connectors 2.Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD |
| USB Chipset: 1.Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2.Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors 1.1 x 24-pin ATX main power connector 2.1 x 4-pin ATX 12V power connector 3.4 x SATA 6Gb/s connectors 4.1 x APU fan header 5.1 x system fan header 6.1 x front panel header 7.1 x front panel audio header 8.1 x S/PDIF Out header 9.1 x USB 3.0/2.0 header 10.1 x USB 2.0/1.1 header 11.1 x Clear CMOS jumper 12.1 x chassis intrusion header |
| Back Panel Connectors 1.1 x PS/2 keyboard/mouse port 2.2 x HDMI ports 3.1 x DVI-D port 4.2 x antenna connectors 5.2 x USB 3.0/2.0 ports 6.4 x USB 2.0/1.1 ports 7.1 x RJ-45 port 8.1 x optical S/PDIF Out connector 9.5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| I/O Controller 1.iTE I/O Controller Chip H/W Monitoring 1.System voltage detection 2.APU/System temperature detection 3.APU/System fan speed detection 4.APU/System fan speed control |
| BIOS 1.2 x 64 Mbit flash 2.Use of licensed AMI EFI BIOS 3.Support for DualBIOS 4.PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a |
| Operating System 1.Support for Windows 8.1/8/7 32-bit/64-bit ( If you plan to install Windows 8.1, please download the latest drivers from GIGABYTEs website.) 2.Support for Windows XP 32-bit Form Factor 1.Mini-ITX Form Factor 17.0cm x 17.0cm |
| Item Dimension (L"xW"xH"): 9 x 8 x 4 Weight: 2 lb Warranty Information: 3 years Manufacture |
