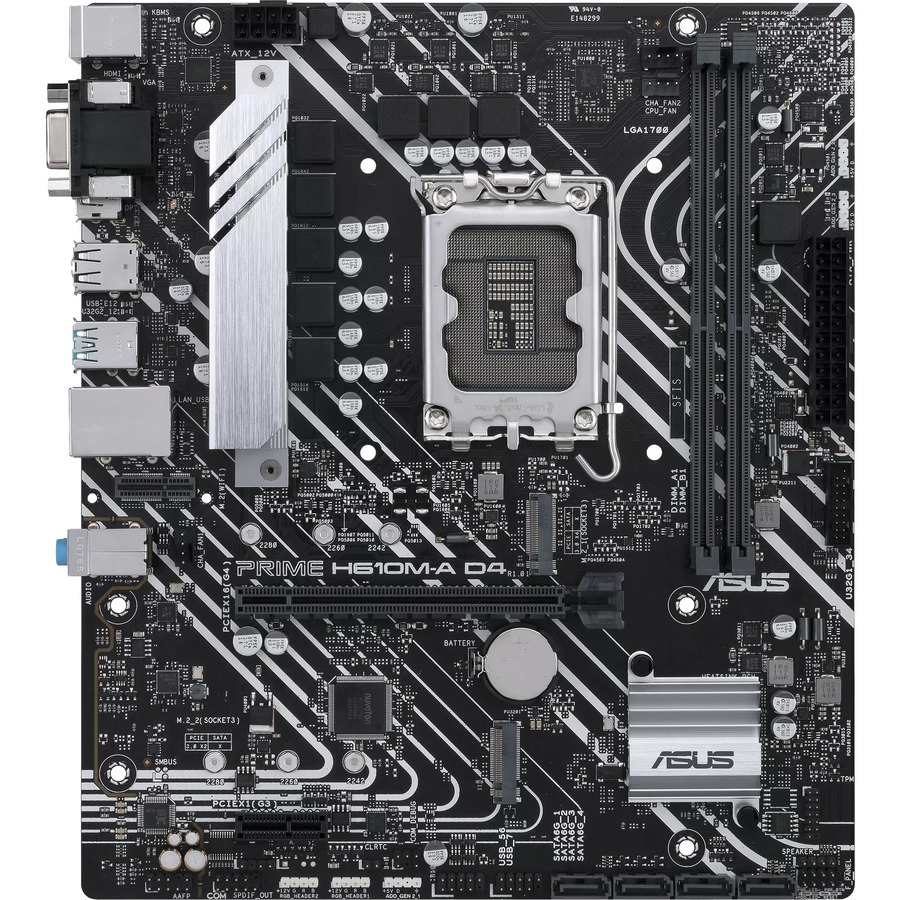

ASUS PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCIe DisplayPort / D-Sub / HDMI mATX Motherboard
$138.89
Was: $166.67
Availability:
In Stock
Richmond BC Warehouse:
19
Toronto ON Warehouse:
68
Product Code:
14573
Brand:
ASUS TeK
Mfg Sku:
PRIME H610M-A D4-CSM
Share to:
Specification
Asus Prime H610M-A D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX
Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Detail Specifications
| CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron ProcessorsNote1 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0Note2 Note1: Refer to www.asus.com for CPU support list. Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset Intel H610 Chipset |
| Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered MemoryNote Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics 1 x DisplayPortNote2 1 x D-Sub port 1 x HDMI portNote3 Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Note2: Supports max. 4K60Hz as specified in DisplayPort 1.4. Note3: Supports 4K60Hz as specified in HDMI 2.1. |
| Expansion Slots Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports |
| Ethernet 1 x Intel 1Gb Ethernet |
| Wireless and Bluetooth V-M.2 slot only (Key E, CNVi and PCIe) Note Note: Wi-Fi module is sold separately. |
| USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
| Audio Realtek 7.1 Surround Sound High Definition Audio CODECNote - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub port 1 x V-M.2 slot (Key E) 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers |
| Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability WOL by PME, PXE |
| Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System Windows 11 64-bit, Windows 10 64-bit |
| Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm) |
| Item Dimension (L inchxW inchxH inch) 11 x 11 x 3 Weight 3.00 lb Warranty Information 3 Years Manufacture Warranty |
