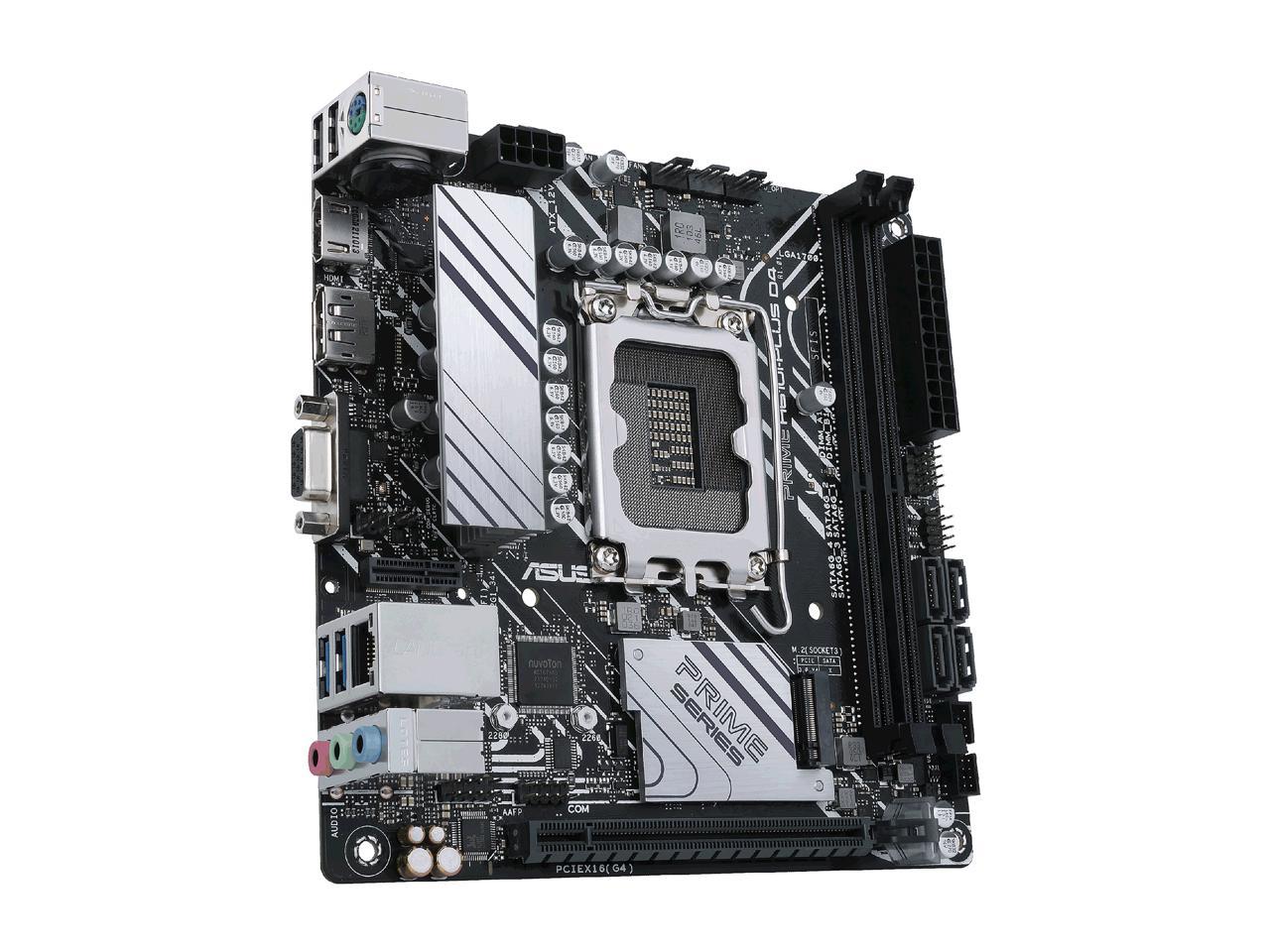

ASUS PRIME H610I-PLUS D4-CSM H610 LGA1700 Max.64GB DDR4 Mini ITX Desktop Motherboard
$143.17
Was: $171.8
Availability:
In Stock
Richmond BC Warehouse:
16
Toronto ON Warehouse:
9
Product Code:
14574
Brand:
ASUS TeK
Mfg Sku:
PRIME H610I-PLUS D4-CSM
Share to:
Specification
ASUS PRIME H610I-PLUS D4-CSM H610 LGA1700 Max.64GB DDR4 Mini ITX Desktop Motherboard
UPC: 195553755757
Detail Specifications
| CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron ProcessorsNote1 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0Note2 Note1: Refer to www.asus.com for CPU support list. Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset Intel H610 Chipset |
| Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics 1 x DisplayPort 1.4Note2 1 x D-Sub 1 x HDMI portNote3 Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Note1: Support DisplayPort 1.4 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates. Note3: Support HDMI 2.1 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates. |
| Expansion Slots Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot |
| Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet 1 x Realtek 1Gb Ethernet |
| Wireless and Bluetooth M.2 slot only (Key E, CNVi and PCIe) Note: Wi-Fi module is sold separately. |
| USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green)) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability WOL by PME, PXE |
| Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Screw Package Installation Media 1 x Support DVD Documentation 1 x User guide |
| Operating System Windows 11 64-bit, Windows 10 64-bit |
| Form Factor Mini ITX Form Factor |
| Item Dimension (L inchxW inchxH inch) 9 x 8 x 3 Weight 2.00 lb Warranty Information 3 Year Warranty (Manufacture) |
