8 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 9.89 W Power Consumption - 126 W PoE Budget - Twisted Pair - PoE Ports - Rack-mountable, Desktop



General Information

Manufacturer Part Number:   TL-SG1008MP
Brand Name:   TP-Link
Product Model:   TL-SG1008MP

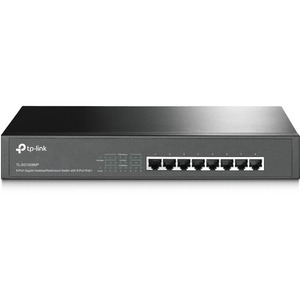

Product Name:   8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
Marketing Information:

What This Product Does

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works

All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement

TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 126W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 126W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use

TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   8
Modular:   No
Network (RJ-45):   Yes
Port/Expansion Slot Details:   8 x Gigabit Ethernet PoE+

Media & Performance

Media Type Supported:   Twisted Pair
Ethernet Technology:   Gigabit Ethernet
Network Technology:   1000Base-T

Network & Communication

Layer Supported:   2
Networking Standards:   IEEE 802.3af
Networking Standards:   IEEE 802.3at
Networking Standards:   IEEE 802.3x

Management & Protocols

Manageable:   No

Power Description

PoE (RJ-45) Port:   Yes
PoE Budget:   126 W
Input Voltage:   120 V AC
Input Voltage:   230 V AC
Frequency:   50 Hz
Frequency:   60 Hz
Power Source:   Power Supply
Power Consumption:   9.89 W

Physical Characteristics

Form Factor:   Desktop
Form Factor:   Rack-mountable
Height:   1.73" (44 mm)
Width:   11.57" (294 mm)
Depth:   7.09" (180 mm)

Miscellaneous

Package Contents:

• 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet



Warranty

Limited Warranty:   2 Years Manufacture
