General Information

Manufacturer:   ASUS Computer International
Manufacturer Part Number:   A68HM-PLUS
Manufacturer Website Address:   www.asus.com
Brand Name:   Asus
Product Model:   A68HM-PLUS

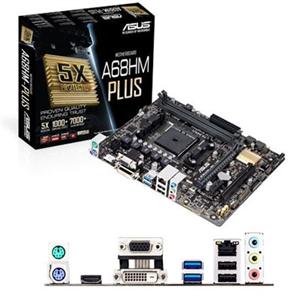

Product Name:   A68HM-PLUS Desktop Motherboard
Marketing Information:

AMD® A-Series Accelerated Processor with AMD Radeon™ R Series Graphics

This motherboard fully supports the latest AMD Socket FM2+ Kaveri APUs with AMD Radeon R series graphics and retains compatibility with AMD Socket FM2 (Richland and Trinity) APUs. AMD Socket FM2+ APUs support Microsoft® DirectX 11.1 for incredibly fast and smooth graphics, native PCI Express 3.0 for full-speed expansion and 4K resolutions via HDMI and DisplayPort connections.

AMD® A68H FCH(Bolton D2H)

AMD® A68H FCH(Bolton D2H) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 graphics.It supports 4X SATA 6 Gb/s ports and 2X USB3.0 ports.

Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   AMD
Chipset Model:   A68
Total Processor Supported:   1
Processor Technology:   Turbo Core 3.0 Technology
Processor Socket:   Socket FM2+
Processor Supported:   A-Series
Processor Supported:   Athlon
64-bit Processing:   Yes

Memory

Number of Memory Slots:   2
Memory Form Factor:   DIMM
Maximum Memory:   32 GB
Memory Standard:   DDR3-1333/PC3L-10600
Memory Standard:   DDR3-1600/PC3-12800
Memory Standard:   DDR3-2400/PC3-19200 (O.C.)
Memory Standard:   DDR3-1866/PC3-15000
Memory Standard:   DDR3-2133/PC3-17000
Memory Technology:   DDR3 SDRAM
Memory Speed Supported:   1.60 GHz
Memory Speed Supported:   1.87 GHz
Memory Speed Supported:   1.33 GHz
Memory Speed Supported:   2.13 GHz
Memory Speed Supported:   2.40 GHz (O.C.)

I/O Controller

Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   JBOD

Video

Onboard Video:   On-board Video Chipset
Graphics Controller Manufacturer:   AMD
Graphics Controller Memory:   2 GB
Graphics Memory Technology:   DDR3 SDRAM
Graphics Memory Accessibility:   Shared

Audio

Sound Controller Manufacturer:   Realtek
Sound Controller Model:   ALC887-VD
Audio Channels:   7.1

Network & Communication

Gigabit Ethernet:   Yes

I/O Expansions

Number of Total Expansion Slots:   3
Number of PCI Slots:   1
PCI Express Standard:   PCI Express 2.0
PCI Express Standard:   PCI Express 3.0
Total Number of PCI Express Slots:   2
Number of PCI Express x1 Slots:   1
Number of PCI Express x16 Slots:   1

Interfaces/Ports

Total Number of USB Ports:   4
Number of USB 2.0 Ports:   2
Number of USB 3.0 Ports:   2
Audio Line In:   Yes
Audio Line Out:   Yes
Microphone Port:   Yes
VGA:   Yes
HDMI:   Yes
Number of HDMI Outputs:   1
DVI:   Yes
Number of DVI Outputs:   1
Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   1
PS/2 Port:   Yes
Number of PS/2 Ports:   2

Onboard Interfaces

Number of SATA Interfaces:   4
Total Number of Onboard USB Ports:   6
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.0 Ports:   2
Onboard Serial Header:   Yes
Onboard Audio Header:   Yes
Onboard S/PDIF Header:   Yes

Power Description

Power Supply Supported:   ATX12V

Physical Characteristics

Form Factor:   Micro ATX
Width:   8.9" (226.1 mm)
Depth:   7.2" (182.9 mm)

Miscellaneous

Certifications & Standards:

• ACPI 4.0a
• C-TICK
• CE
• FCC
• KC (KOREA CERTIFICATION)

Green Compliant:   Yes
Green Compliance Certificate/Authority:   RoHS
Green Compliance Certificate/Authority:   WEEE

Warranty

Limited Warranty:   3 Years Manufacture
